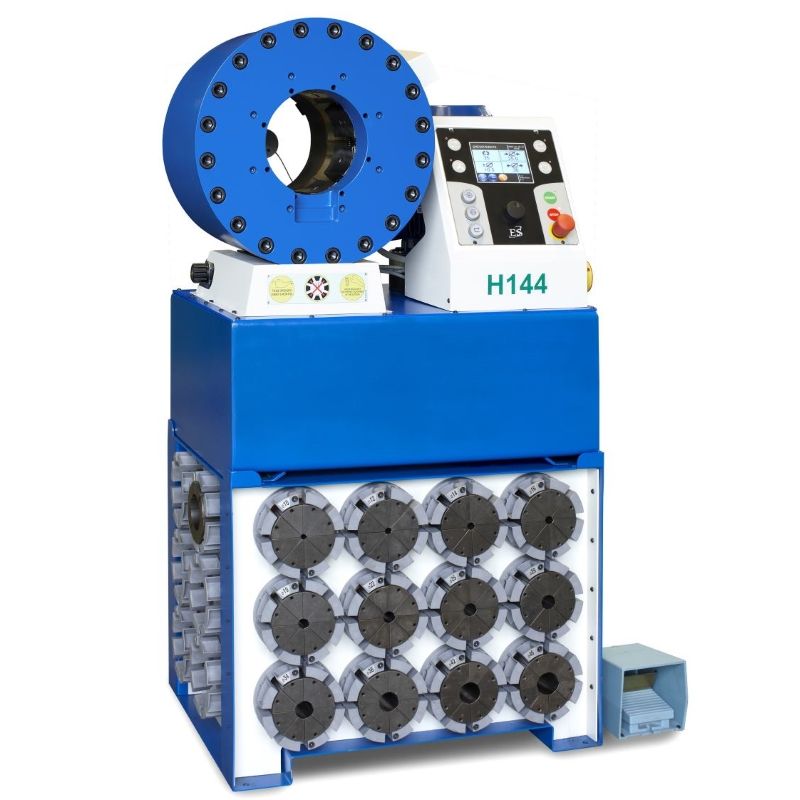

TUBOMATIC H144 ES / TUBH144ES
Tubomatic H144 ES is ideal for crimping hydraulic hoses up to 2"1/2 six spirals and industrial hose up to 4".
Main Features
- ideal for crimping any type of fitting;
- ES3 Siemens PLC control with 5,7'' color touch-screen display;
- back limit switch.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 400 TON (440 US TONS) |
| 6 SPIRALS 2 PIECES | 2''1/2 |
| INDUSTRIAL HOSE | 4'' |
| MAX Diam. | 144 mm (5.674'') |
| CRIMPING / HOUR | 1136 |
| DIE OPENING | Ø + 45 mm (Ø + 1.772'') |
| 90 FITTINGS | 2'' |
| STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
| MOTOR POWER | 5.5 Kw (7.5 Hp) A=10,74 |
| DIMENSIONS LxDxH | 830x770x885 mm (32.677''x30.349''x34.843'') |
| WEIGHT WITHOUT OIL | 530 KG (1168 Lbs) |
| OIL | 110 lt |
| ELECTRONIC CONTROL WITH TOUCH SCREEN | incl. |
| BACK LIMIT SWITCH | incl. |
| PRESSURE CONTROL SYSTEM | OPTIONAL |
| SPEED CONTROL SYSTEM | OPTIONAL |
| PRESSURE KIT | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| BASE | OPTIONAL |
| MARKING DIES 15 CHAR. | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| BASE + QUICK CHANGE DIE SYSTEM | OPTIONAL |
| CLEANING AND MAINTENANCE KIT | OPTIONAL |
| DATA TRANSFER KIT | OPTIONAL |
| MULTISTEP | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| MIRROR | OPTIONAL |
| CRIMPING SPEED | OPTIONAL |
