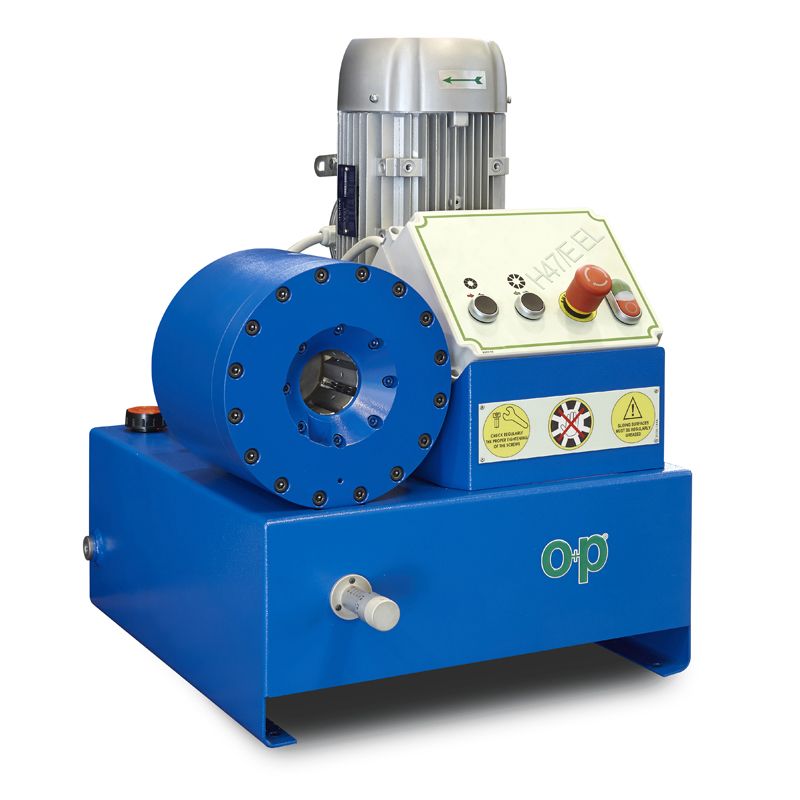

TUBOMATIC H47/E EL / TUBH47/EEL

Tubomatic H47/E EL is ideal for crimping hydraulic hoses up to 1" four spirals.
This versatile machine can be used for several applications. It is the perfect equipment for hydraulic hose manufacturers and assemblers.

Main Features

  • electric pump

Product specifications could be modified without prior notice.

TUBOMATIC H47/E EL


CRIMPING FORCE 120 TON (130 US TONS)
CAPACITY 1'' 4SP
MAX Diam. 46 mm* (1.811'')
CRIMPING / HOUR 930
DIE OPENING Ø + 20 mm (Ø + 0.788'')
90 FITTINGS 3/8''
STANDARD VOLTAGE 400V 50HZ 3PH
MOTOR POWER 2.2 Kw (3 Hp)
DIMENSIONS L x W x H 500x645x670 mm (19.685''x25.394''x26.378'')
WEIGHT WITHOUT OIL 94 KG (208 Lbs)
EFFORT ON LEVER DOUBLE
TOOL FOR DIE CHANGE incl.
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
ELECTRIC PEDAL OPTIONAL
