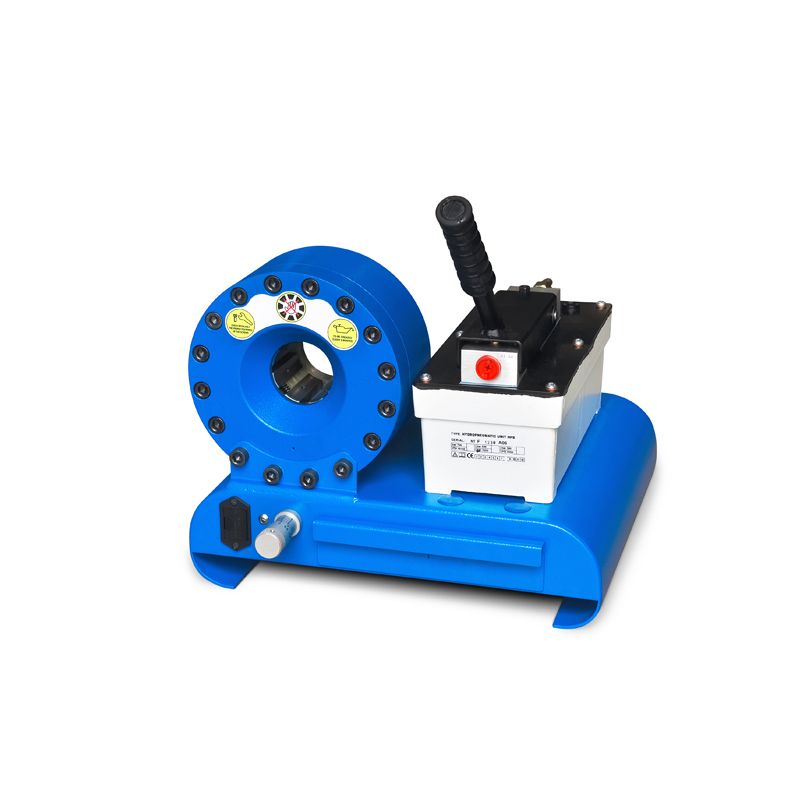

TUBOMATIC H47 PI / TUBH47PI

Tubomatic H47 PI is ideal for crimping hydraulic hoses up to 1" 2 braids.
This versatile machine can be used for several applications and it is perfect for outdoor service.

Main Features

  • pneumo-hydraulic pump;
  • equipped with an electric limit switch indicating when the crimping diameter is reached;
  • tool for dies change.

Product specifications could be modified without prior notice.

TUBOMATIC H47 PI


CRIMPING FORCE 100 TON (110 US TONS)
CAPACITY 1'' 2 SP
MAXIMUM CRIMPING Diam. 46 mm* (1.811'')
DIE OPENING Ø + 20 mm (Ø + 0.788'')
90 FITTINGS 3/8''
DIMENSIONS L x W x H 380x430x400 mm (14.960''x16.929''x15.760'')
WEIGHT 38 KG (84 Lbs)
PNEUMATIC INPUT max 7 bar (100 psi)
ONE ACTING CYLINDER incl.
DIE HOLDER DRAWER incl.
OIL incl.
SPECIAL DIES OPTIONAL
TOOL FOR DIE CHANGE OPTIONAL
