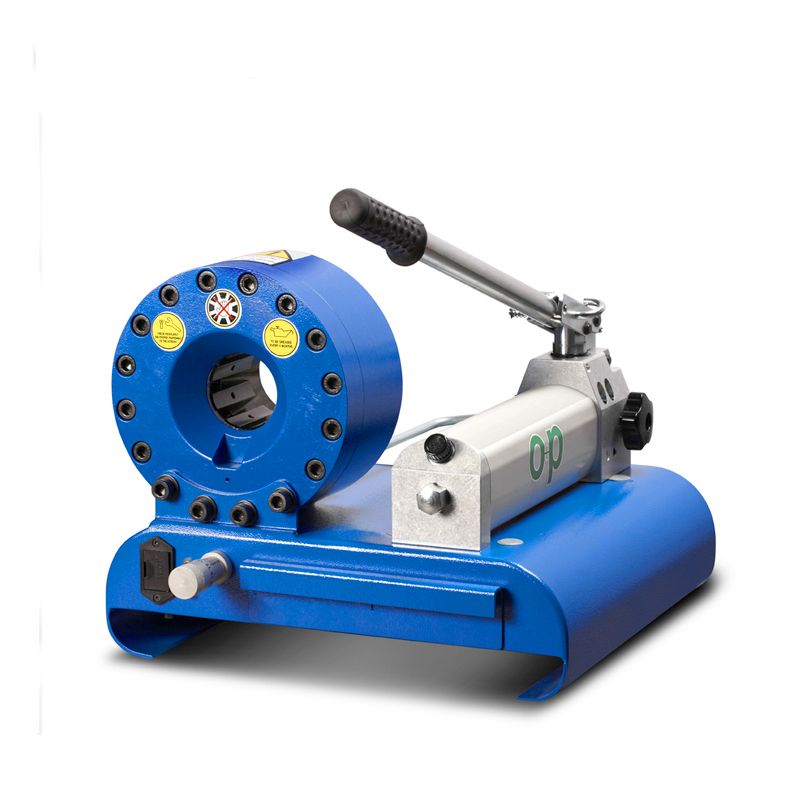

TUBOMATIC H47 PM / TUBH47PM

Tubomatic H47 PM is ideal for crimping hydraulic hoses up to 1" 2 braids.
This versatile machine can be used for several applications and it is perfect for outdoor service.

Main Features

  • manual pump;
  • equipped with an electric limit switch indicating when the crimping diameter is reached;
  • tool for dies change.

Product specifications could be modified without prior notice.

TUBOMATIC H47 PM


CRIMPING FORCE 100 TON (110 US TONS)
CAPACITY 1'' 2 SP
MAXIMUM CRIMPING Diam. 46 mm* (1.811'')
DIE OPENING Ø + 20 mm (Ø + 0.788'')
90 FITTINGS 3/8''
DIMENSIONS L x W x H 390x510x300 mm (15.354''x20.078''x11.811'')
WEIGHT 32 KG (71 Lbs)
EFFORT ON LEVER 30 KG (66 Lbs)
ONE ACTING CYLINDER incl.
OIL incl.
DIE HOLDER DRAWER incl.
SPECIAL DIES OPTIONAL
TOOL FOR DIE CHANGE OPTIONAL
