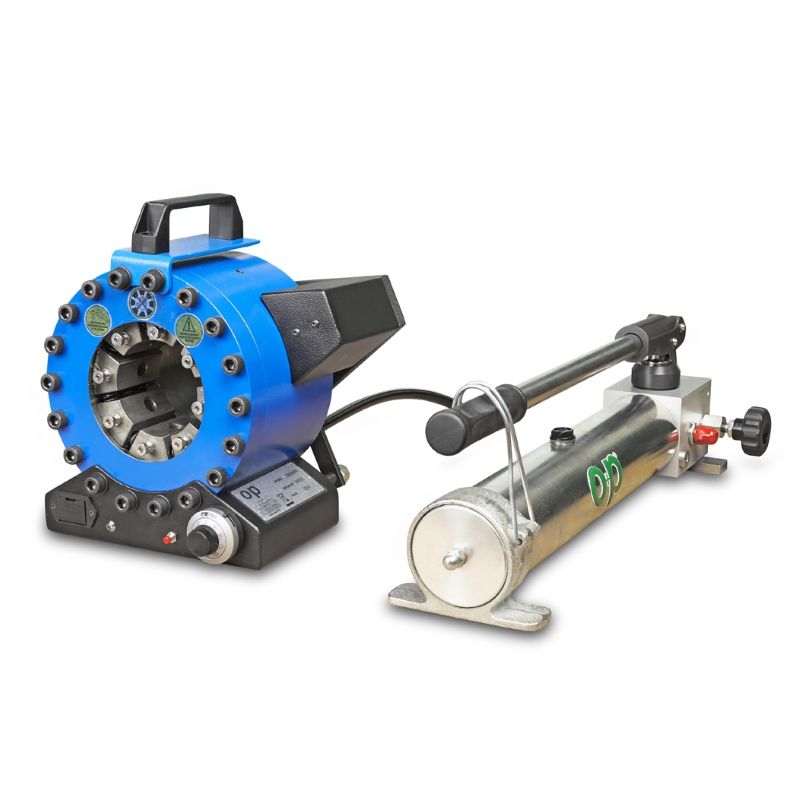

TUBOMATIC H64 PM / TUBH64PM

Tubomatic H64 PM is ideal for crimping hydraulic hoses up to 1" 1/2 two braids.
Light and easy to move, it is the perfect equipment for on-site service.

Main Features

  • manual pump separated from the machine;
  • electric limit switch indicating when the crimping diameter is reached.

Product specifications could be modified without prior notice.

Technical Specifications

Crimping Dies

TUBOMATIC H64 PM

CRIMPING FORCE 120 TON (132 US TONS)
6 SPIRALS 2 PIECES 1''
2 BRAIDS 2 PIECES 1''1/2
MAX Diam. 64 mm (2.559'')
DIE OPENING Ø + 15 mm (Ø + 0.59'')
WEIGHT 43 KG (95 Lbs)
OIL 1,8 lt.
DIMENSIONS LxDxH 306x260x310 mm (12.047''x10.126''x12.205'')
EFFORT ON LEVER 35 kg (77 Lbs)
ONE ACTING CYLINDER incl.
SPECIAL DIES OPTIONAL
