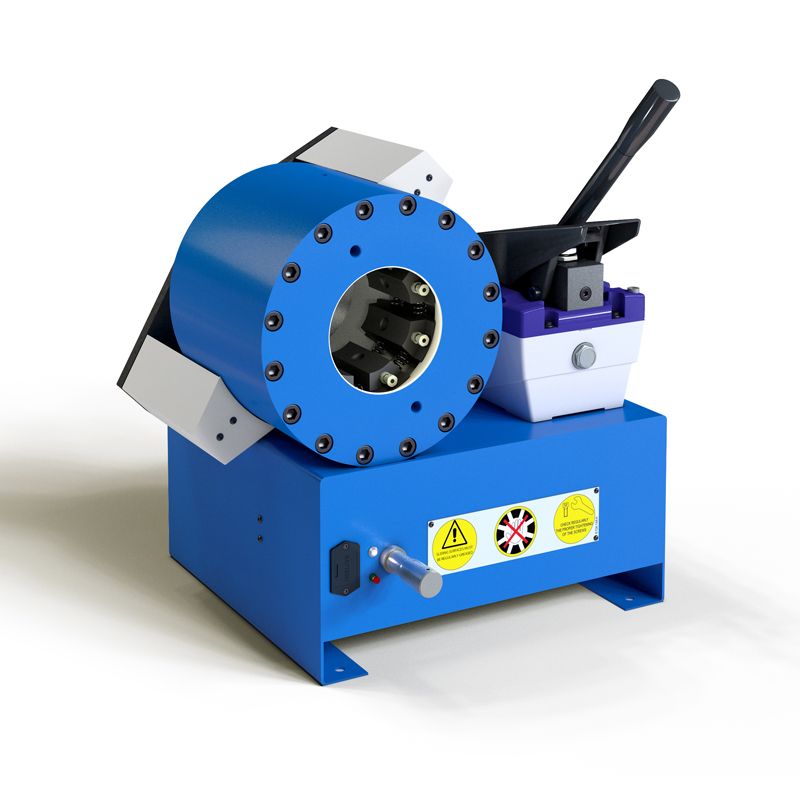

TUBOMATIC H83/EPI / TUBH83/EPI

Tubomatic H83/E PI is ideal for crimping hydraulic hoses up to 1" six spirals and up to 1"1/2 four spirals. This versatile machine can be used for several applications. It is the perfect equipment for hydraulic hose manufacturers and assemblers.

Main Features

  • ideal for crimping any type of fitting;
  • pneumo-hydraulic pump.

Product specifications could be modified without prior notice.

Technical Specifications

Crimping Dies

TUBOMATIC H83/EPI

CRIMPING FORCE 135 TON (150 US TONS)
6 SPIRALS 2 PIECES 1
4 SP 2 PIECES WITH SPECIAL DIES 1''1/2
4 SH 2 PIECES ACCORDING TO THE FITTING 1''1/4
MAX Diam. 64 mm* (2.519'')
DIE OPENING Ø + 42 mm (Ø + 1.654'')
90 FITTINGS 1
DIMENSIONS L x W x H 475x475x560 mm (18.701''x18.701''x22.047'')
WEIGHT 82 KG (180 Lbs)
ONE ACTING CYLINDER incl.
OIL incl.
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
