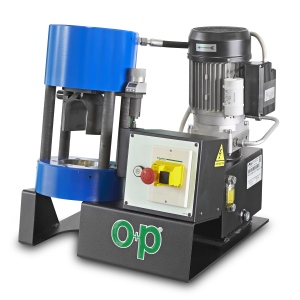

TUBOMATIC J67 EL / TUBJ67EL

Tubomatic J67 EL is ideal for crimping hydraulic hoses up to 1"1/4 four spirals and 1"1/2 two spirals.
This versatile machine is the perfect equipment for manufacturers and hydraulic hose assemblers.

Main Features

  • electric pump;
  • vertical working position.

Product specifications could be modified without prior notice.

TUBOMATIC J67 EL


CRIMPING FORCE 171 TON (190 US TONS)
4 SPIRALS 1''1/4
2 BRAIDS 1''1/2
MAX Diam. 67 mm (2.638'')
90 FITTINGS 1''1/2
DIMENSIONS L x W x H 640x570x660 mm
WEIGHT 132 kg
HYDRAULIC UNIT 700 Bar (10.150 Psi)
MOTOR POWER 0,7 Kw (0.9 Hp)
STANDARD VOLTAGE 110V 60Hz 1ph
CYLINDER SINGLE
OIL incl.
SPECIAL DIES OPTIONAL
DIE HOLDER STAND OPTIONAL
SPECIAL VOLTAGE OPTIONAL
