TUBOMATIC N120 EL / TUBN120ES - TUBN120EL

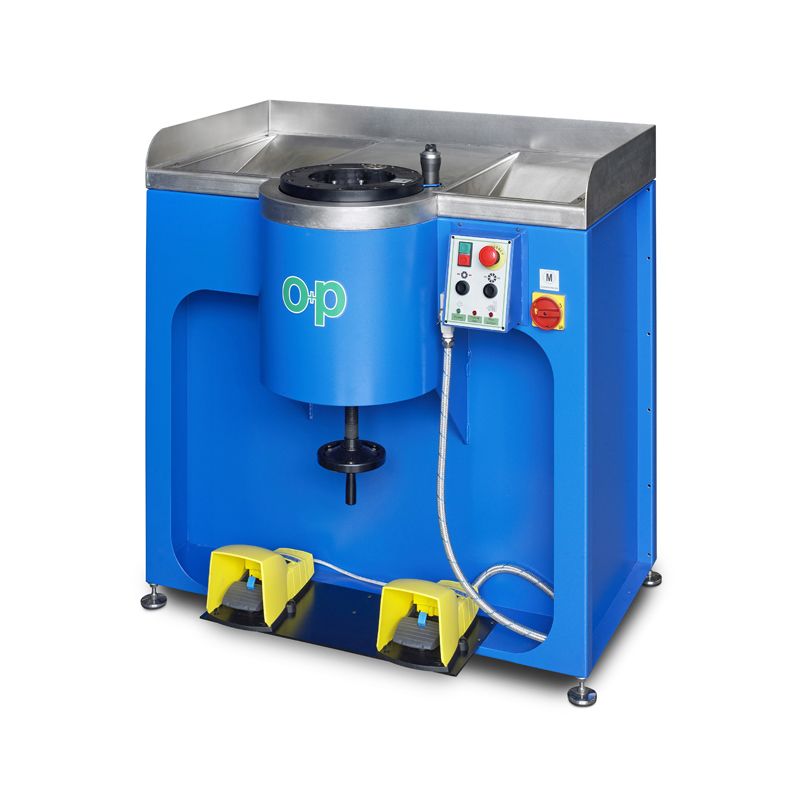

Tubomatic N120 EL is a particularly quick and high volume crimping machine, ideal for crimping nuts for flexible hose fittings: it can also be used for further applications such as high/low pressure cables and hoses up to a diameter of 120 mm.

Main Features

  • silent pump;
  • vertical working position.

Product specifications could be modified without prior notice.

TUBOMATIC N120 EL


CRIMPING FORCE 80 TON (90 US TONS)
MAX Diam. 120 mm* (4.724'')
CRIMPING / HOUR 2500
DIE OPENING Ø + 24 mm (Ø + 0.946'')
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 4 Kw (5.5 Hp)
DIMENSIONS L x D x H 1080x810x1290 mm (42.552''x31.914''x50.826'')
WEIGHT WITHOUT OIL 455 KG (1003 (Lbs)
OIL 65 lt
MECHANICAL LIMIT SWITCH incl.
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
ELECTROMECHANICAL CONTROL [EL] inc.
VERNIER DIAL incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE incl.
LIMIT SWITCH ADAPTOR OPTIONAL
BASE + QUICK CHANGE DIE SYSTEM OPTIONAL
MARKING DIES 15 CHAR. OPTIONAL
SPECIAL VOLTAGE OPTIONAL
BARCODE OPTIONAL
WEBCAM OPTIONAL
CONNECTION FROM PLC TO PC OPTIONAL
AUTOMATIC LUBRICATING SYSTEM OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
QUALITY CHECK OPTIONAL
MULTISTEP OPTIONAL
ELECTRIC PEDAL OPTIONAL
CRIMPING SPEED OPTIONAL
PEDAL 12,8 mm/sec (0.504'')
