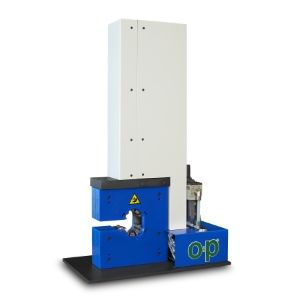

TUBOMATIC S33PI / TUBS33PI

Tubomatic S33PI is a particularly quick high volume crimping machine, especially designed to crimp low pressure, brake and textile hoses up to diameter of 37 mm.

Main Features

  • air operated by air-oil multiplier;
  • wide crimping head for crimping hoses with complex bends

Product specifications could be modified without prior notice.

TUBOMATIC S33PI


CRIMPING FORCE 13,5 TON (9 bar) - 9 TON (6 bar)
HOSE 5/8''
MAX DIAMETER 37 mm
MACHINE EXTRA STROKE Ø + 50 mm
CLOSING SPEED 30 mm/sec
CRIMPING SPEED 100 mm/sec
OPENING SPEED 50 mm/sec
CLOSING TIME 1,7 sec
CYCLE TIME 4,1 sec
CRIMPING TIME 1,4 sec
DIE OPENING Ø + 12 mm
FRONT OPENING 38 mm
PNEUMATIC INPUT max 9 bar
DIMENSIONS L x W x H 625x360x1050 mm (24.606''x14.173''x41.339'')
WEIGHT 165 kg (364 Lbs)
PEDAL OPTIONAL
DOUBLE ACTING CYLINDER incl.
