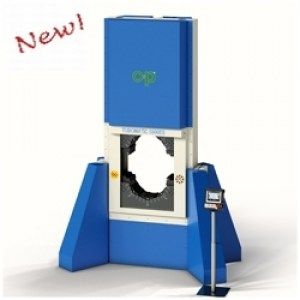

TUBOMATIC S500 ES / TUBS500ES

With a maximum opening of 500 mm with respect to the diameter to be crimped, S500 ES crimping machine is able to crimp industrial hoses up to 12'' with big flanges, thanks to the extra stroke of its dies holders.

Main Features

  • ES4 Siemens PLC control with 7'' color touch-screen display;
  • self lubricating moving components;
  • new silent pump;
  • "6 o'clock fixed position" of the die for greater stability of the hose during crimping;
  • particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
  • back limit switch;
  • protractor for orientation fittings;
  • hydraulic power pack included;
  • mobile control board.

Product specifications could be modified without prior notice.

TUBOMATIC S500 ES


CRIMPING FORCE 830 TON (914 US TONS)
6 SPIRALS 2 PIECES 3''
INDUSTRIAL HOSE 12''
MAX Diam. 500 mm* (19.685'')
DIE OPENING Ø + 140 mm (Ø + 5.511'')
MACHINE EXTRA STROKE Ø + 500 mm (+ 19.685'')
CLOSING SPEED 9 mm/sec (0.354''/sec)
CRIMPING SPEED 1 mm/sec (0.039''/sec)
OPENING SPEED 44 mm/sec (1.732''/sec)
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 11 Kw (20 Hp) A=21,96
DIMENSIONS L x W x H 2600x1451x3958 mm (102.44''x57.13''x155.63'')
WEIGHT WITHOUT OIL 12700 Kg (32046 Lbs)
OIL 300 lt
HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE incl.
HYDRAULIC POWER PACK DIMENSIONS L x W x H 1246x669x1269 mm (49.055''x26.339''x49.961'')
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
PROTRACTOR FOR ORIENTATION FITTINGS incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE OPTIONAL
PRESSURE CONTROL SYSTEM OPTIONAL
SPEED CONTROL SYSTEM OPTIONAL
BARCODE OPTIONAL
WEBCAM OPTIONAL
CONNECTION FROM ES4 TO PC OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
BACK LIMIT SWITCH OPTIONAL
QUALITY CHECK OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
MULTISTEP OPTIONAL
ELECTRIC PEDAL OPTIONAL
CRIMPING SPEED OPTIONAL
TOOL-HOLDER SUPPORT OPTIONAL
