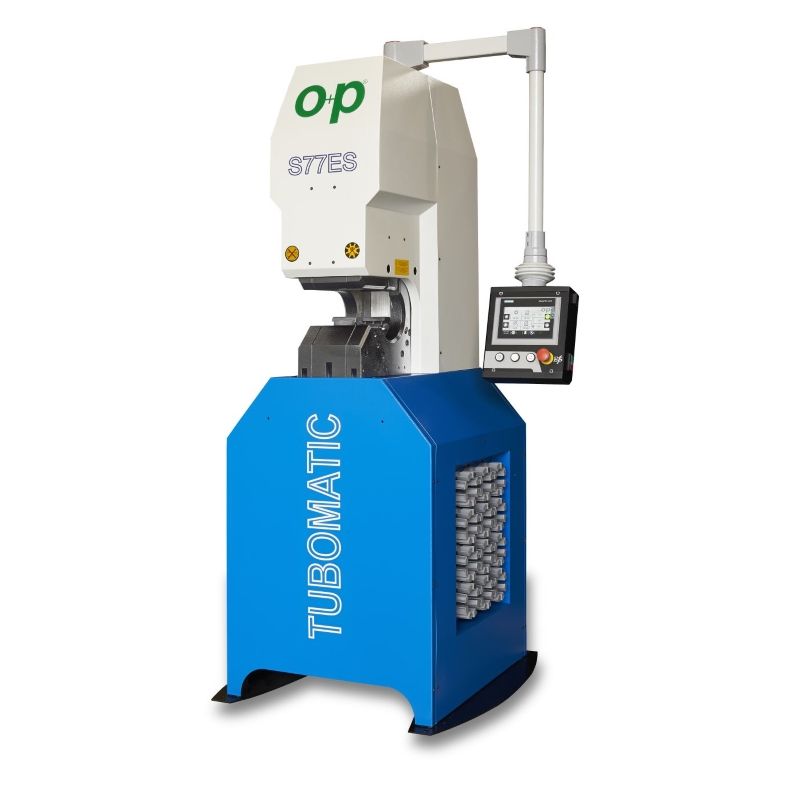

TUBOMATIC S77 ES / TUBS77ES

Tubomatic S77 ES was especially designed to crimp hoses having tight and complex bends thanks to a frontal rift which facilitates hose passage thus increasing productivity.This peculiarity becomes especially useful in the automotive industry, where the combined use of flexible hoses and tubing is becoming more and more common.
However, it can also be used for crimping flexible hydraulic hoses up to a diameter of 95 mm.

Main Features

  • ES4 Siemens PLC control with 7'' color touch-screen display;
  • self lubricating moving components;
  • new silent pump;
  • "6 o'clock fixed position" of the die for greater stability of the hose during crimping;
  • particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
  • hydraulic power pack included;

Product specifications could be modified without prior notice.

TUBOMATIC S77 ES


CRIMPING FORCE 45 TON (49 US TONS)
MAX Diam. 95 mm* (3.740'')
CLOSING SPEED 23,5 mm/sec
CRIMPING SPEED 4,5 mm/sec
DIE OPENING Ø + 41 mm (Ø + 1.614'')
MACHINE EXTRA STROKE + 93 mm (+ 3.661'')
FRONT OPENING 80 mm (3.150'')
STANDARD VOLTAGE 375-400V 50HZ 3PH
MOTOR POWER 2.2 Kw (3 Hp)
DIMENSIONS L x W x H 1100x900x2145 mm (43.307''x35.433''x84.448'')
WEIGHT WITHOUT OIL 1100 KG (2425 Lbs)
OIL 100 lt
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
SETTABLE MAINTENANCE COUNTER FOR PERIODIC SERVICE OPTIONAL
PRESSURE CONTROL SYSTEM OPTIONAL
SPEED CONTROL SYSTEM OPTIONAL
QUALITY CHECK OPTIONAL
BARCODE OPTIONAL
WEBCAM OPTIONAL
CONNECTION FROM ES4 TO PC OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
BASE + QUICK CHANGE DIE SYSTEM OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
MULTISTEP OPTIONAL
ELECTRIC PEDAL OPTIONAL
CRIMPING SPEED OPTIONAL
TOOL-HOLDER SUPPORT OPTIONAL
