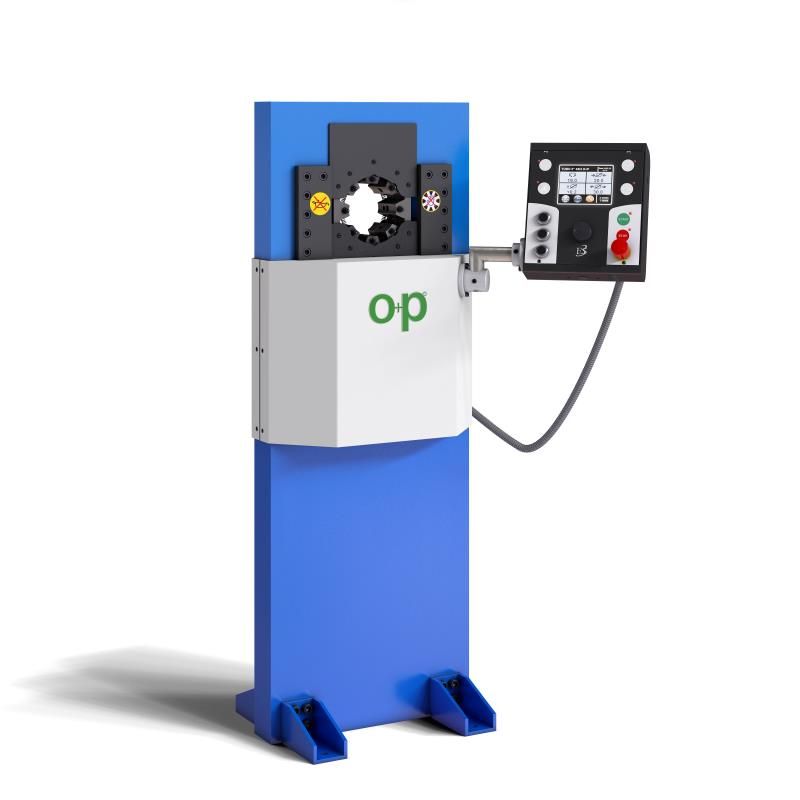

TUBOMATIC V59/E ES / TUBV59EES

Tubomatic V59/E ES volume crimping machine is ideal for crimping hydraulic hoses up to 1" six spirals and 1"1/4 four spirals.

Main Features

  • ES4 Siemens PLC control with 5.7'' color touch-screen display;
  • self lubricating moving components;
  • silent pump;
  • particularly narrow crimping head to crimp hose ends with large flanges or 90° fittings;
  • hydraulic power pack separated from the machine.;

Product specifications could be modified without prior notice.

TUBOMATIC V59/E ES


CRIMPING FORCE 140 TON (155 US TONS)
6 SPIRALS 2 PIECES 1''
4 SP 2 PIECES 1''1/4
2 BRAIDS 1''1/2
MAX Diam. 67 mm* (2.638'')
CRIMPING/HOUR 1363
CLOSING SPEED 5,4 mm/sec(0.212'')
CRIMPING SPEED 5,4 mm/sec(0.212'')
OPENING SPEED 12,8 mm/sec (0.504'')
DIE OPENING Ø + 50 mm (Ø + 1.970'')
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 5,5 Kw (7.5 Hp) A=10,64
DIMENSIONS L x W x H 770x411x1464 mm (30.315''x16.181''x57.638'')
WEIGHT WITHOUT OIL 572 Kg (1261 Lbs)
OIL 50 lt
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
BACK LIMIT SWITCH incl.
HYDRAULIC POWER PACK SEPARATED FROM THE MACHINE incl.
HYDRAULIC POWER PACK DIMENSIONS L x W x H 640x620x745 mm (25.197''x24.409''x29.331'')
HYDRAULIC POWER PACK WEIGHT 110 Kg (243 Lbs)
PRESSURE CONTROL SYSTEM OPTIONAL
FRONT AND REAR PROTECTION NET WITH ACTIVATION LIMIT SWITCH OPTIONAL
SPEED CONTROL SYSTEM OPTIONAL
QUALITY CHECK OPTIONAL
MULTISTEP OPTIONAL
DATA TRANSFER KIT OPTIONAL
MIRROR OPTIONAL
BACK LIMIT SWITCH OPTIONAL
DISPENSER + QUICK CHANGE OPTIONAL
ELECTRIC PEDAL OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
TOOL-HOLDER SUPPORT OPTIONAL
