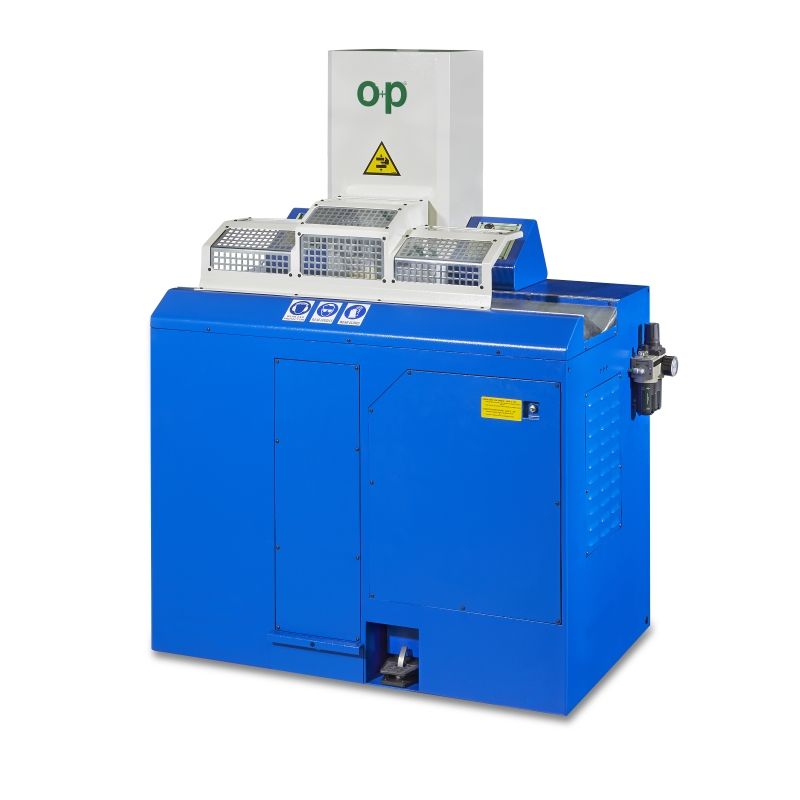

TF 5 / TAGLTF5D

TF5 is ideal for cutting flexible hydraulic hoses up to 3" six spirals.
Fume extractor and blowink kit upon request.

Main Features

  • self braking motor (7,5 Kw);
  • stroke counter;
  • Ø 520 mm serrated blade;
  • cutting speed adjustment device;
  • self-centring hose support;
  • pedal-equipped pneumatic control;
  • drawer for internal cleaning and single blade replacement;
  • recessed blade and guards for the operator's safety.

Product specifications could be modified without prior notice.

Technical Specifications

TF 5

6 SPIRALS 3''
4 SPIRALS 3''
2 BRAIDS 3''
INDUSTRIAL HOSE 4''
MAX Diam. 160 mm (6.299'')
REVOLUTIONS/MINUTE 2900
PNEUMATIC INPUT MAX 7 BAR (100 psi)
BLADE Diam. 520 mm (20.472'')
STANDARD VOLTAGE 400V 50HZ 3PH
DIMENSIONS L x W x H 1260x805x1575 mm (49.606''x31.692''x61.968'')
WEIGHT 485 KG (1069 lbs)
SELF BRAKING MOTOR POWER 7.5 Kw (10 Hp) A=13,80
STROKE COUNTER incl.
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
MEASURING HOSE HOLDER OPTIONAL
CENTRING DEVICE + METER COUNTER OPTIONAL
FUME EXTRACTOR OPTIONAL
BLOWING KIT OPTIONAL
SPECIAL VOLTAGE OPTIONAL
