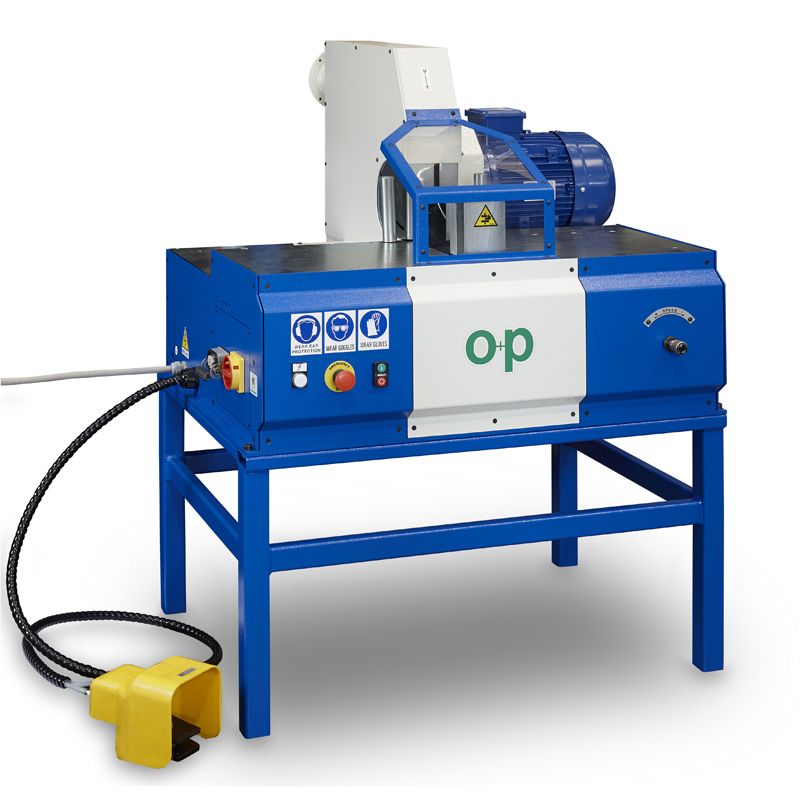

TF 5 ECO / TAGLTF5DECO

TF 5 ECO is ideal for cutting flexible hydraulic hoses up to 3" six spirals.
Blowing kit and fume extractor upon request.

Product specifications could be modified without prior notice.

TF 5 ECO


6 SPIRALS 3''
4 SPIRALS 3''
2 BRAIDS 3''
INDUSTRIAL HOSE 4''
MAX Diam. 160 mm (6.299'')
REVOLUTIONS/MINUTE 2900
PNEUMATIC INPUT MAX 7 BAR (100 psi)
BLADE Diam. 520 mm (20.472'')
STANDARD VOLTAGE 400V 50HZ 3PH
DIMENSIONS L x W x H 1065x1020x770 mm (41.929''x40.158''x30.315'')
WEIGHT 355 KG (783 lbs)
MOTOR POWER 7,5 KW (10 Hp) A=13,35
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
STROKE COUNTER OPTIONAL
MEASURING HOSE HOLDER OPTIONAL
CENTRING DEVICE + METER COUNTER OPTIONAL
BASE OPTIONAL
FUME EXTRACTOR OPTIONAL
BLOWING KIT OPTIONAL
SPECIAL VOLTAGE OPTIONAL
