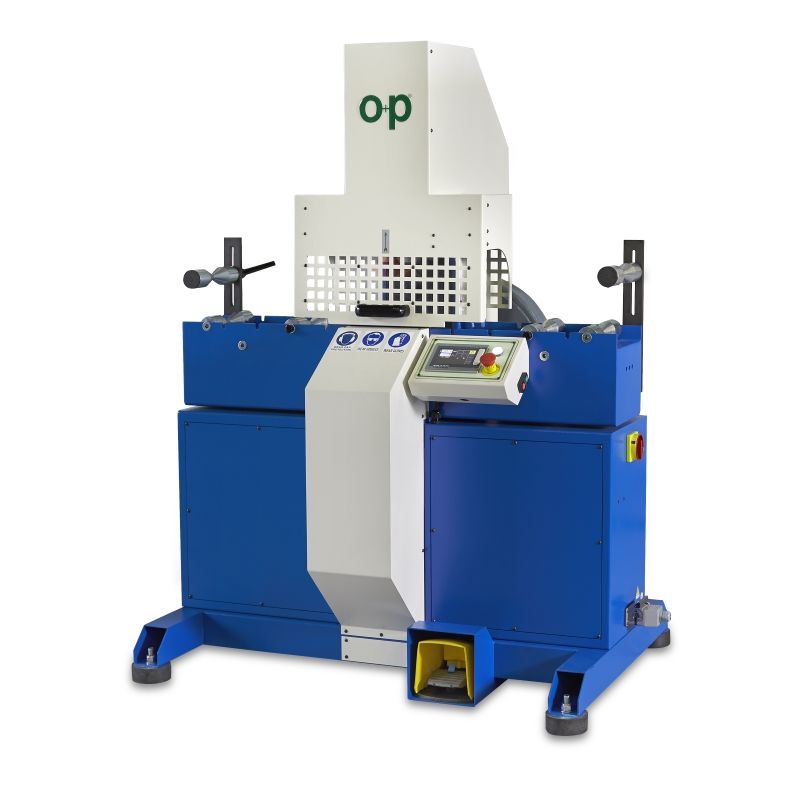

TF 6 / TAGLTF6D

TF6 is ideal for cutting flexible hydraulic hoses up to 3" six spirals.
Fume extractor upon request.
Version without self-braking motor available.

Main Features

  • self braking motor (11 Kw);
  • Ø 650 mm serrated blade;
  • self-centring hose support;
  • pedal-equipped pneumatic control;
  • drawer for internal cleaning and single blade replacement;
  • recessed blade and guards for the operator's safety;
  • PLC control.

Product specifications could be modified without prior notice.

TF 6


6 SPIRALS 3''
4 SPIRALS 3''
2 BRAIDS 3''
INDUSTRIAL HOSE 4''
MAX Diam. 160 mm (6.299'')
REVOLUTIONS/MINUTE 2900
BLADE Diam. 650 mm (25.590'')
STANDARD VOLTAGE 400V 50HZ 3PH
DIMENSIONS L x W x H 1250x870x1615 mm (60(49.212'''x34.251''x63.582'')
WEIGHT 466 KG (1027 Lbs)
SELF BRAKING MOTOR POWER 11 Kw (15 Hp) A=23,00
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
MEASURING HOSE HOLDER OPTIONAL
CENTRING DEVICE + METER COUNTER OPTIONAL
FUME EXTRACTOR OPTIONAL
BLOWING KIT OPTIONAL
SPECIAL VOLTAGE OPTIONAL
