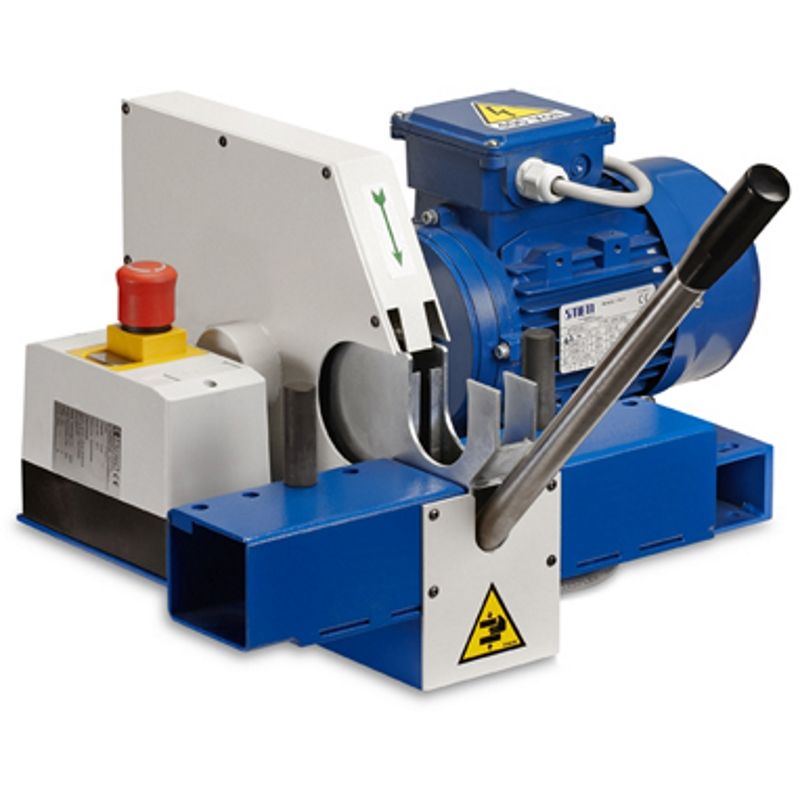

TF1/E / TAGLTF1D/E

TF1/E is an inexpensive and compact cutting machine, ideal for cutting flexible hydraulic hoses up to 1" 1/4 four spirals and up to 1" six spirals.
12V power pack available upon request.

Main Features

  • suction connection;
  • manually operated;
  • recessed blade and guards for the operator's safety.

Product specifications could be modified without prior notice.

TF1/E


6 SPIRALS 1''
4 SPIRALS 1'' 1/4
2 BRAIDS 1'' 1/4
MAX. Diam. 60 mm (2.362'')
REVOLUTIONS/MINUTE 2900
BLADE Diam. 250 mm (9.843'')
STANDARD VOLTAGE 400V 50HZ3PH
DIMENSIONS L x W x H 525x660x445 mm (20.669''x25.984''x17.559'')
WEIGHT 30 Kg (66 Lbs)
MOTOR POWER 1.1 Kw (1.5 Hp)
SUCTION CONNECTION incl.
12V VOLTAGE OPTIONAL
SPECIAL VOLTAGE OPTIONAL
