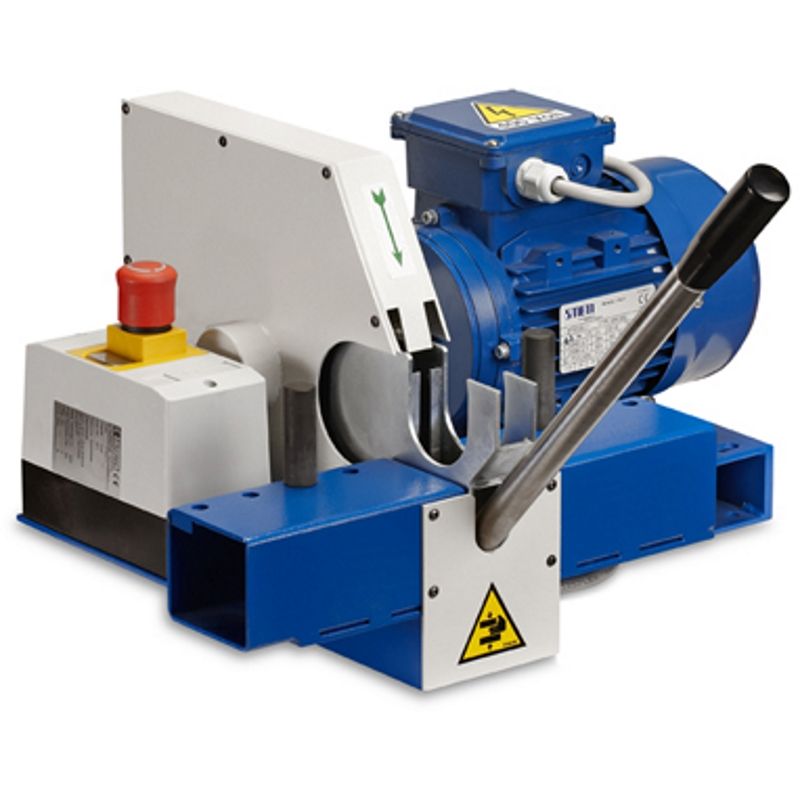

TF2/E / TAGLTF2D/E

TF2/E is an inexpensive and compact cutting machine, ideal for cutting flexible hydraulic hoses up to 2" four spirals and up to 1" 1/2 six spirals.

Main Features

  • Ø 250 mm serrated blade;
  • manual operation;
  • recessed blade and guards for the operator's safety.

Product specifications could be modified without prior notice.

TF2/E


6 SPIRALS 1''1/2
4 SPIRALS 2''
2 BRAIDS 2''
MAX. Diam. 75 mm (2.953'')
REVOLUTIONS/MINUTE 2900
BLADE Diam. 250 mm (9.843'')
STANDARD VOLTAGE 400V 50HZ3PH
DIMENSIONS L x W x H 650x700x420 mm (25.590''x27.559''x16.535'')
WEIGHT 44 Kg (97 Lbs)
MOTOR POWER 3 Kw (4 Hp)
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
CENTRING DEVICE + METER COUNTER OPTIONAL
SPECIAL VOLTAGE OPTIONAL
