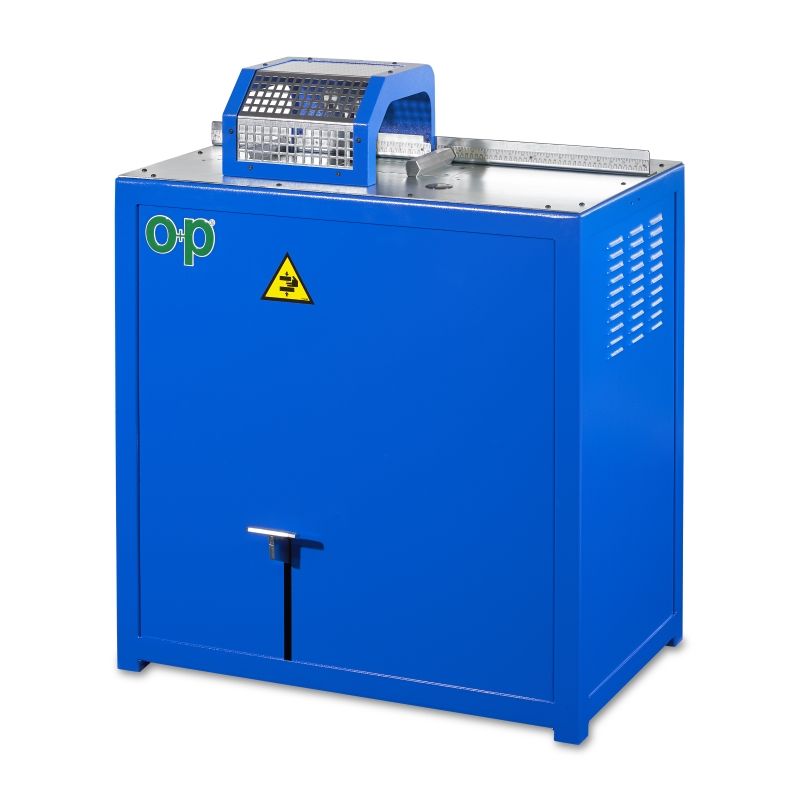

TF3 / TAGLTF3D

TF3 is ideal for cutting flexible hydraulic hoses up to 2" six spirals.

Main Features

  • suction connection;
  • Ø 400 mm serrated blade;
  • mechanical pedal control;
  • recessed blade and guards for the operator's safety.

Product specifications could be modified without prior notice.

TF3


6 SPIRALS 2''
4 SPIRALS 2'' 1/2
2 BRAIDS 3''
MAXIMUM CUTTING Diam. 100 mm (3.937'')
REVOLUTIONS/MINUTE 2900
BLADE Diam. 400 mm (15.748'')
STANDARD VOLTAGE 400V 50HZ 3PH
DIMENSIONS L x W x H 1000x710x1150 mm (39.370''x27.953''x45.276'')
WEIGHT 190 KG (419 Lbs)
MOTOR POWER 5.5 Kw (7.5 Hp) A=10,14
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
MEASURING HOSE HOLDER OPTIONAL
CENTRING DEVICE + METER COUNTER OPTIONAL
STROKE COUNTER OPTIONAL
SPECIAL VOLTAGE OPTIONAL
