TUBOCUT 5 / TUBOCUT5

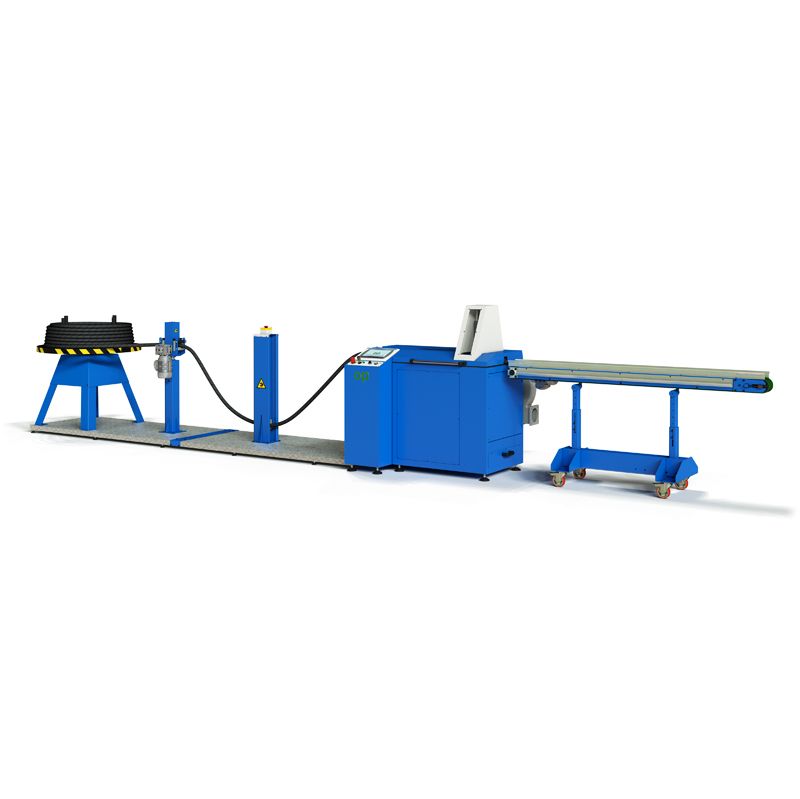

TUBOCUT 5 is an automatic cutting machine ideal for the volume production of hose assemblies.
The machine can cut hose up to a diameter of 1'' four spirals; cutting range from a minimum outside diameter of 10 mm up to 41 mm.

Main Features

  • automated hose feeding;
  • cutting machine with Siemens PLC control with 9'' color touch-screen display;
  • recessed blade and guards for the operator's safety;
  • hose marking system;
  • suction pipe connection;
  • cleaning drawer / blade replacement.

Product specifications could be modified without prior notice.

TUBOCUT 5


4 SPIRALS 1''
OD HOSE 10-41 mm (0.394'''-1.614'')
CUTTING TOLERANCE ± 2 %
MIN. CUTTING LENGTH 250 mm (9.8425'')
MAX. CUTTING LENGTH 99999 mm (3936.961'')
BELT SPEED 15 - 30 - 40 M/MIN.
BLADE Diam. 520 mm (20.472'')
REVOLUTIONS/MINUTE 2800
MAX. REEL WEIGHT 150 KG (330 Lbs)
STANDARD VOLTAGE 400V 50HZ 3PH
BLADE MOTOR POWER 5.5 kw (7.5 Hp) A=9,85
TRANSMISSION BELT MOTOR POWER 0.35 Kw (0.5 Hp)
SUCTION HOSE CONNECTION Diam. 100 mm (3.937'')
PNEUMATIC INPUT MAX 6 BAR (84 psi)
CUTTING MACHINE WEIGHT 750 KG (1653 Lbs)
HOSE FEEDING SYSTEM WEIGHT 250 KG (552 Lbs)
CONVERYOR BELT WEIGHT 110 KG (240 Lbs)
CUTTING MACHINE DIMENSIONS L x W x H 1450 x 850 x 1450 mm (57.087''x33.465''x57.087'')
WINDER DIMENSIONS L x W x H 4150 x 1050 x 1250 mm (163.385''x41.339''x49.212'')
CONVEYOR BELT DIMENSIONS L x W x H 2150 x 500 x 1000 mm (84.645''x19.685''x39.370'')
FUME EXTRACTOR OPTIONAL
CONVEYOR BELT OPTIONAL
CONNECTION FROM ES4 TO PC OPTIONAL
BARCODE OPTIONAL
HOSE MARKING SYSTEM WITH USER INTERFACE OPTIONAL
