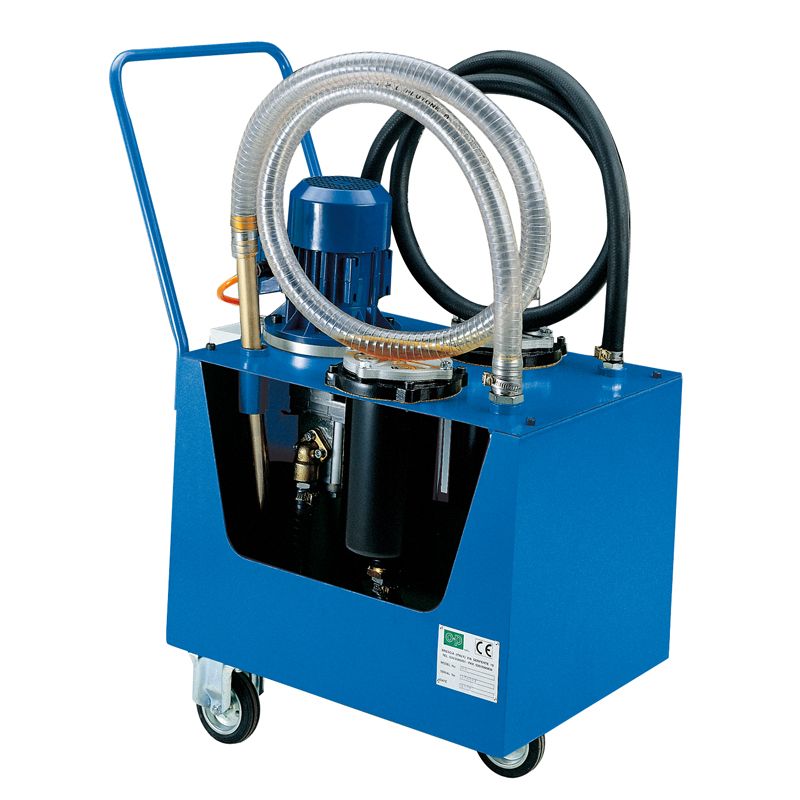

CF1 / CARRFILT

This small and functional device filters and decants hydraulic oil from the tanks of crimpers, machinery, steelworks systems and other general hydraulic systems.
The constant use of the CF1 filtering trolley prevents wear upon pumps, motors, cylinders, and valves, as well as their moving part and seals, thereby drastically reducing machinery down time and costs related to maintenance and lost productivity.

Product specifications could be modified without prior notice.

 CF1


DELIVERY FILTERING 25 MICRON
SUCTION FILTERING 125 MICRON
WEIGHT 60 KG (132 lbs)
DIMENSIONS L x W x H 750x440x950 mm (29.528''x17.323''x37.402'')
STANDARD VOLTAGE 400V 50HZ 3PH
PUMP DELIVERY 39 LT/MIN.
MOTOR POWER 0.55 Kw (0.75 Hp)
10 MICRON FILTER OPTIONAL
20 MICRON FILTER OPTIONAL
SPECIAL VOLTAGE OPTIONAL
