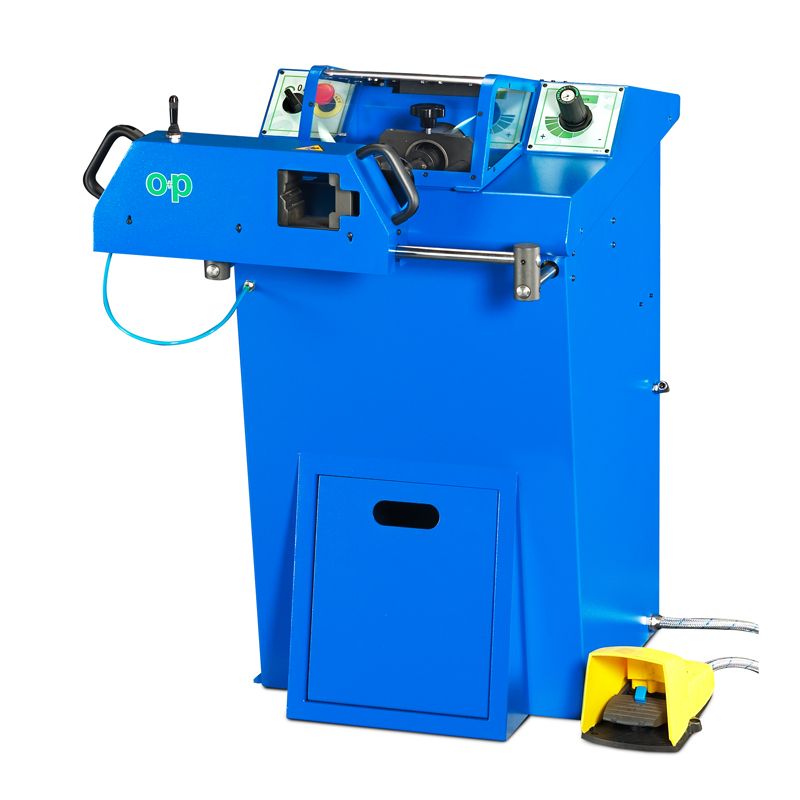

SPF3 / SPELSPF3

This device simultaneously allows skiving the internal and external surface of hydraulic hoses up to a 2’’ diameter. This characteristic makes it particularly suitable for large-scale production of interlock hoses.
SPF3 is provided with a double cutter for skiving the external surface and a single cutter for internal skiving.

Main Features

  • pedal-equipped pneumatic control;
  • penumatic vice.

Product specifications could be modified without prior notice.

SPF3


EXTERNAL SKIVING 2''
INTERNAL SKIVING 2''
REVOLUTIONS/MINUTE 200
PNEUMATIC INPUT MAX 7 BAR (100 psi)
WORKING CYCLE manual
WEIGHT 145 KG (319 lbs)
DIMENSIONS L x W x H 725x810x1070 mm (28.543''x31.889''x42.126'')
MOTOR POWER 0.75 Kw (1 Hp)
STANDARD VOLTAGE 400V 50HZ 3PH
SAFETY PROTECTION incl.
SAFETY VICE incl.
ELECTRIC PEDAL incl.
TOOL HOLDER incl.
SPECIAL VOLTAGE OPTIONAL
