SPF6 / SPELSPF6

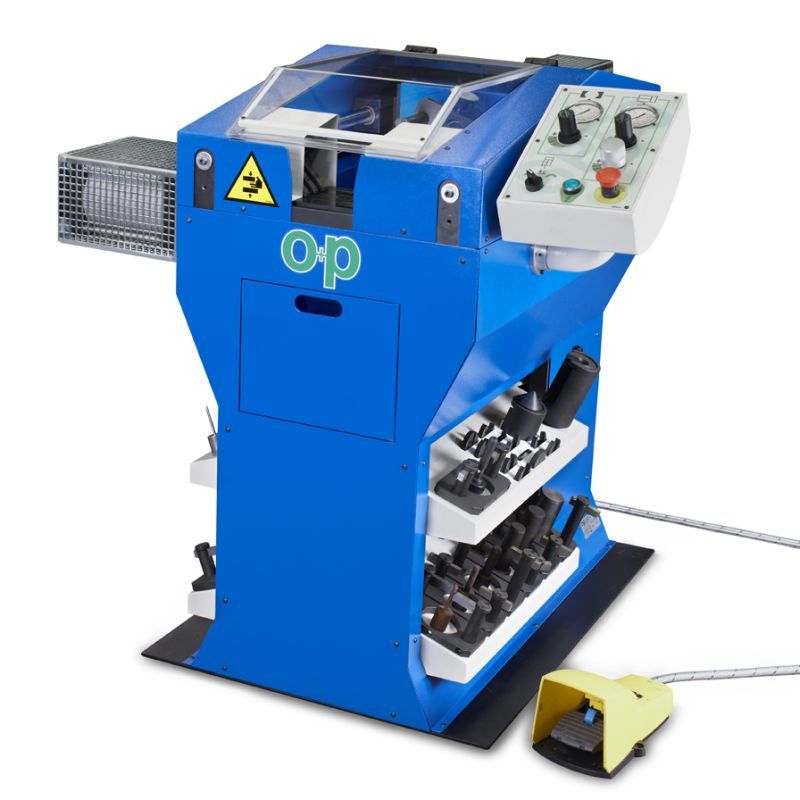

SPF6 skiving machine is capable of simultaneously or separately skiving the interior and exterior surface of hydraulic hoses as well as obtaining a perfect preassembly of the fittings thanks to the insertion function it is provided with.

Main Features

  • safety device which prevents the operation of the machine when the safety casing is open;
  • drawer for shavings;
  • self-centering penumatic vice.

Product specifications could be modified without prior notice.

SPF6


EXTERNAL SKIVING 3''
INTERNAL SKIVING 3''
INSERT CAPACITY 3''
SIMULTANEOUS INT-EXT SKIVING 2''
REVOLUTIONS/MINUTE 300
WORKING CYCLE semi-automatic
PNEUMATIC INPUT MAX 8 BAR (115 psi)
WEIGHT 330 KG (727 Lbs)
DIMENSIONS L x W x H 1050x1300x1100 mm (41.339''x51.181''x43.307'')
MOTOR POWER 1,1 Kw (1,5 Hp)
SAFETY PROTECTION incl.
ELECTRIC PEDAL incl.
TOOL HOLDER incl.
DRAWER FOR SHAVINGS incl.
SPECIAL VOLTAGE OPTIONAL
