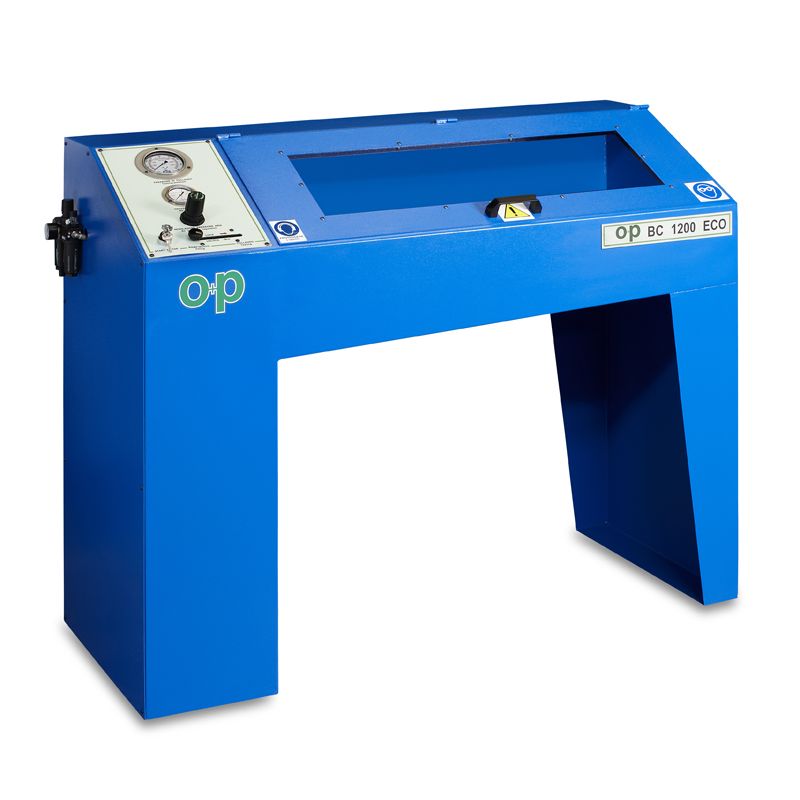

BC1200ECO / BC1200ECO

Test bench up to 1200 bar, small and easy to use, provided with a Ø 1/4'' gas quick coupling, analogue pressure gauge and pneumo-hydraulic pump.
Pressure control and discharge, testing and liquid filling are manually made.

Product specifications could be modified without prior notice.

BC1200ECO


STATIC PRESSURE 1200 bar (17400 psi)
MIN. STARTING PRESSURE 70 bar (1015 psi)
PRESSURE CONTROL manual
TEST manual
TYPE OF DRIVE pneumatic intensifier
TEST LIQUID OIL
N. MANIFOLDS 1
N. MANIFOLD CONNECTIONS special quick couplings
LIQUID FILLING manual
FILLING FLOW 0,3 Lt/min
PRESSURE DISCHARGE manual
STANDARD CHAMBER DIMENSIONS 1200x550x250 mm (47.250''x21.650''x9.800'')
BENCH DIMENSIONS 1500x600x1200 mm (59.055''x23.600''x47.250'')
TANK 30 Lt
WEIGHT WITHOUT OIL 165 Kg (363 Lbs)
SHOCK-PROOF CHECKING WINDOWS incl.
SUCTION FILTER incl.
DELIVERY FILTER incl.
OIL PROTECTING MESH incl.
ADAPTER WITH ¼'' QUICK COUPLING incl.
ADAPTER OPTIONAL 3/8''-1/2''-3/4''-1''-1''1/4-1''1/2-2''
