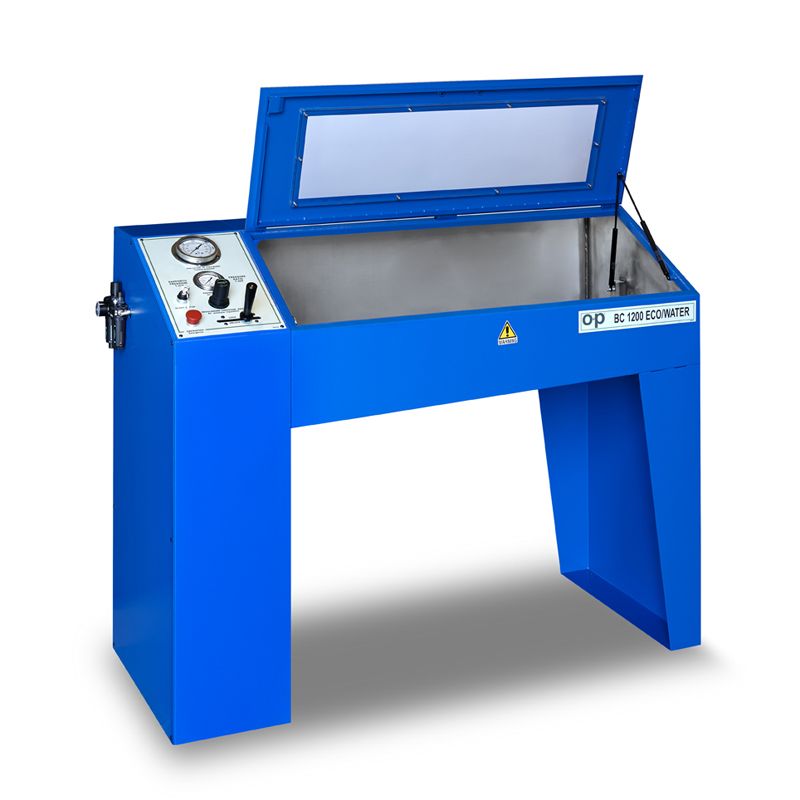

BC1200ECO/WATER / BC1200ECO/WATER

Water test bench up to 1200 bar, small and easy to use, provided with a Ø 1/4'' gas quick coupling, analogue pressure gauge and pneumo-hydraulic pump.
Pressure control and discharge, testing and liquid filling are manually made.
Chamber and components are made in stainless steel.

Product specifications could be modified without prior notice.

BC1200ECO/WATER


STATIC PRESSURE 1200 bar (17400 psi)
MIN. STARTING PRESSURE 70 bar (1015 psi)
PRESSURE CONTROL manual
TEST manual
TYPE OF DRIVE pneumatic intensifier
TEST LIQUID water
N. MANIFOLDS 1
N. MANIFOLD CONNECTIONS special quick couplings
LIQUID FILLING manual
FILLING FLOW 0,3 Lt/min
PRESSURE DISCHARGE manual
STANDARD CHAMBER DIMENSIONS 1200x550x250 mm (47.250''x21.650''x9.800'')
BENCH DIMENSIONS 1500x600x1200 mm (59.055''x23.600''x47.250'')
TANK 30 Lt
WEIGHT WITHOUT OIL 130 KG (286 Lbs)
SHOCK-PROOF CHECKING WINDOWS incl.
SUCTION FILTER incl.
DELIVERY FILTER incl.
ADAPTER WITH ¼'' QUICK COUPLING incl.
ADAPTER 3/8''-1/2''-3/4''-1''-121/4-1''1/2-2''
