DF 3 AP
DF 3 VIE 1/4” AP ACC - DF 3 VIE 3/8” AP ACC. - DF 3 VIE 1/2” AP ACC. - DF 3 VIE 3/4” AP ACC. - DF 3 VIE 1” AP ACC.

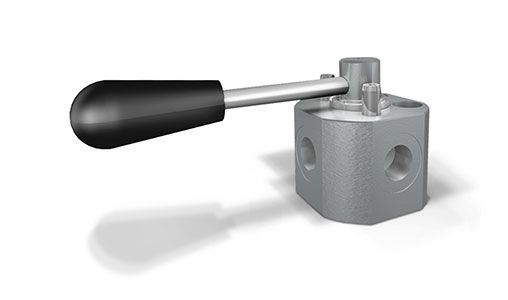

High Pressure 3-Ways Diverter Valves, Steel Body

Use and Operation
Diverter flow is used to divert the flow towards 2 different outlets.

Materials and Features

  • Body: steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: minor leakage

Applications
Connect P to the pressure flow, A and P to the ports of the hydraulic circuit where flow has to be diverted. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).

Code:

V0879/AP - V0881/AP - V0891/AP - V0901/AP - V0911/AP

DF 3 AP - DF 3 AP
DF 3 AP - DF 3 AP
