VBPDE 2 CEXC
VBPDE 1/4” L 2 CEXC – 10L - VBPDE 1/4” L 2 CEXC - VBPDE 3/8” L 2 CEXC

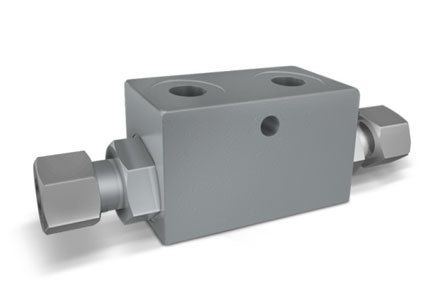

Double Pilot Operated Check Valves For 12 MM Pipe Mounting (DIN 2353)

Use and Operation
Pilot check valves are used to block the actuator in both directions.Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied. They are easily assembled on a cylinder. We supply on request fittings kit for mounting on cylinder swith a specific centre distance.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: any leakage

Applications
Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator with the pipe.

On Request

  • without seal on pilot piston
  • without nut and olive
  • 1 Bar spring
  • 8 Bar spring
Code:

V0091 - V0090 - V0110

VBPDE 2 CEXC - VBPDE 2 CEXC
VBPDE 2 CEXC - VBPDE 2 CEXC
