Use and Operation

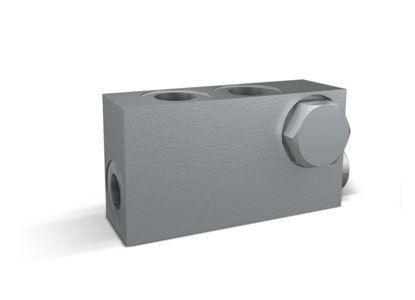

Pilot check valves are used to block the cylinder in both directions. Flow is free in one direction and blocked in the reverse direction until pilot pressure is applied.This valve is ideal for very short distance centre cylinders and is fixed on them by a drilled screw supplied with the valve.
Materials and Features

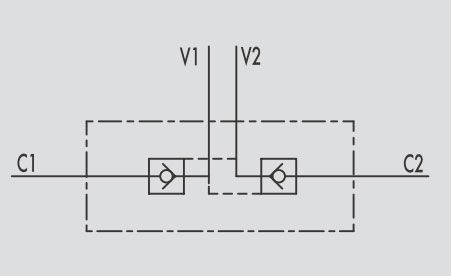

Connect V1 and V2 to the pressure flow and C1 and C2 to the actuator by the screw.
