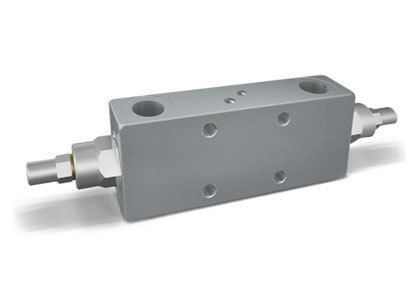

DOUBLE OVERCENTRE VALVES FLANGEABLE

Use and Operation
These valves are used to control actuator’s movements and block in one direction in order to have a under control descent of a load; load’s weight doesn’t carry it away, as the valve prevents any cavitations of the actuator. Flange ports enable direct mounting of the valve on the actuator.

Materials and Features

• Body: zinc-plated steel
• Internal Parts: hardened and ground steel
• Seals: BUNA N standard
• Poppet Type:  minor leakage

Applications

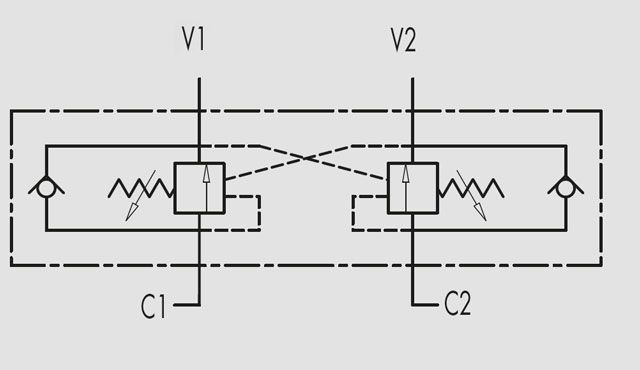

Connect V1 and V2 to the pressure flow and flange C1 and C2 directly to the actuator.

On Request

• other settings available
• sealing cap (CODE/P) and arranged for sealing cap (CODE/PP)
