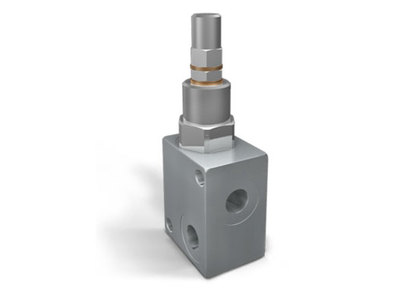

VMP L
VMP 1⁄4” L - VMP 3⁄8” L

LIGHT RELIEF VALVES

Use and Operation
The relief valve provides overload protection in a fast and accurate way: when it reaches pressure setting, the valve open allowing pressure relief in order not to exceed this setting.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type:  minor leakage

Applications

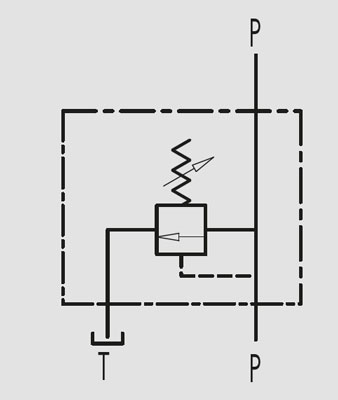

Connect circuit port with pressure to P and tank port to T. Port P is reversible..

On Request

  • different setting range
  • other setting available (CODE/T: please specify the desired setting)
Code:

V0689 - V0690

VMP L - VMP L
VMP L - VMP L
