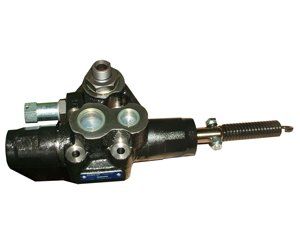

Proportional mechanical tipping valve operated by cable controls series LINEA or LINEA BLOCK to suit medium-heavy duty tipper trucks. Operated by proportional cab control. - Built-in check and adjustable relief valves (direct type). - Nodular cast-iron body for pressure up to 400 bar. - Either Chassis or tank (DSP kit) mounting options. - Mechanical Direct End-of-stroke with anti-shock spring. - Ready for pressure signal switch mounting. - Galvanized body and nickel spool. - Compact size thanks to front ports. - Guaranteed for oil temperature range -25 a 80 °C, viscosity range 12 a 100 cSt and oil filtering 25 µm.
|12101010036||Dvt.fm80 Ce Modulare||3,7400|
* The figures and technical data set out in the tables are only intended as approximations.
