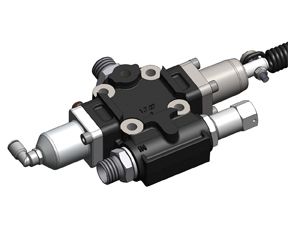

Pneumatic proportional tipping valve to suit light duty tipper trucks. It is commonly used in combination with our Airpack air compressor system. Open center hydraulic scheme according to CE standards. - Built-in check and adjustable relief valves. - Either Chassis or tank (DSP kit) mounting options. - Mechanical Direct End- of-stroke with anti-shock spring. - Ready for pressure signal switch mounting. - Galvanized body and nickel spool. - Compact size. - Guaranteed for oil temperature range -25 a 80 °C, viscosity range 12 a 100 cSt and oil filtering 25µm
* The figures and technical data set out in the tables are only intended as approximations.
