Pneumatic Pilot Side Ports

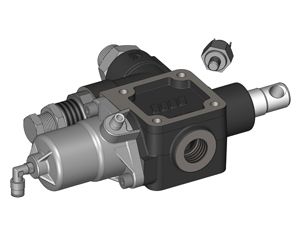

Proportional pneumatic tipping valve to suit medium-heavy duty tipper trucks. Operated by N-FORCE. Open center hydraulic scheme accordino to CE standards. - Built-in check and adjustable relief valves (pilot type). - Nodular cast-iron body for pressare up to 400 bar - Either Chassis or tank (DSP kit) mounting options. - Mechanical Direct End-of-stroke with anti-shock spring. - Ready for pressare signal switch mounting.- - Galvanized body and nickel spool. - Compact size thanks to front ports. - Guaranteed for oil temperature range -25 a 80 °C, viscosità range 12 a 100 cSt and oil filtering 25 µm.

PNEUMATIC PILOT SIDE PORTS


CODE DESCRIPTION WEIGHT (Kg)
12100800407 Modular 150 Ce 3/4"a.l.pilot. Valve 5,5500

* The figures and technical data set out in the tables are only intended as approximations.
