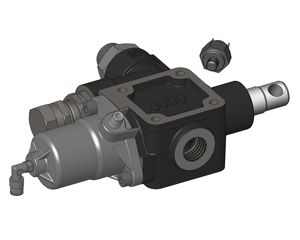

Pneumatic Tipping Valve Side Ports

Proportional pneumatic tipping valve to suit medium-heavy duty tipper trucks. Operated by N-FORCE. Open center hydraulic scheme according to CE standards. - Built-in check and adjustable relief valves (direct type). - Nodular cast-iron body for pressure up to 400 bar. - Either Chassis or tank (DSP kit) mounting options. - Mechanical Direct End-of-stroke with anti-shock spring. - Ready for pressure signal switch mounting. - Galvanized body and nickel spool. - Guaranteed for oil temperature range -25 a 80 °C, viscosity range 12 a 100 cSt and oil filtering 25 µm.

PNEUMATIC TIPPING VALVE SIDE PORTS


CODE DESCRIPTION WEIGHT (Kg)
12100800372 Modular 150 Ce 3/4"a.l.direct Valve 5,5100

* The figures and technical data set out in the tables are only intended as approximations.
