Direct Pneumatic

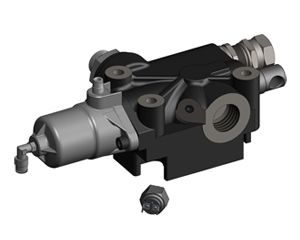

Proportional pneumatic tipping valve suitable for large oil flow applications especially designed for heavy-duty tipper bodies, off-road trucks and semi-trailers. Operated by N-FORCE. Open center hydraulic scheme according to CE standards. - Built-in check and adjustable relief valves (direct type). - Nodular cast-iron body for pressure up to 400 bar. - Either Chassis or tank mounting options. - Mechanical Direct End-of-stroke with anti-shock spring. - Ready for pressure signal switch mounting. - Galvanized body and nickel spool. - Guaranteed for oil temperature range -25+80 °C, viscosity range 12-100 cSt and oil filtering 25 µm.

DIRECT PNEUMATIC


CODE DESCRIPTION WEIGHT (Kg)
12100800041 Modular 250 Ce 1" Direct Valve 7,5400
12100800050 Modular 200 Ce 3/4" Direct Valve 7,5400

* The figures and technical data set out in the tables are only intended as approximations.
