VABP

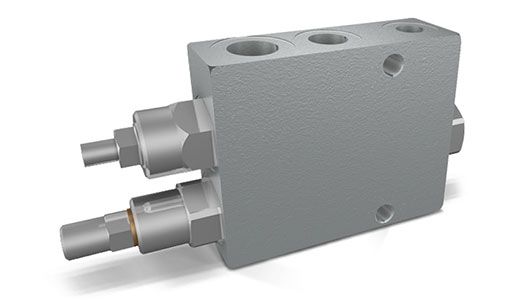

VABP 3/8” - VABP 1/2” - VABP 3/4”

Two Pump "Hi-Low" Unloading Valves

Use and Operation
This valve is used in a 2 parallel-working pumps circuit in order to release the excess of the higher flow pump to the tank when this gets the required pressure setting. Since this moment and on the actuator works with the lower flow pumps at higher pressure, consuming less energy.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: minor leakage

Applications

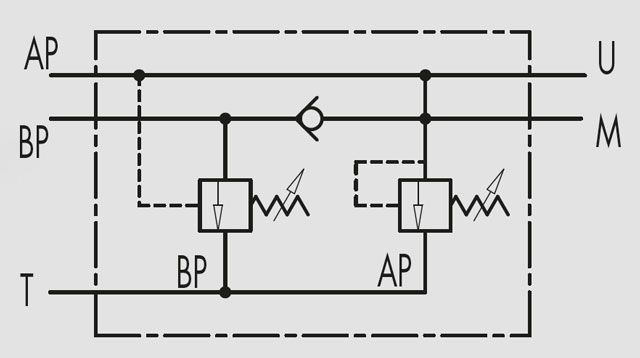

Connect BP to the higher flow pump, AP to the lower flow pump, T to the tank, M to the eventual manometer and U as for necessity.

Code:

V0512 - V0513 - V0514

VABP - VABP
VABP - VABP
