VABP FL
VABP FL 6 - VABP FL 10 - VABP FL 16

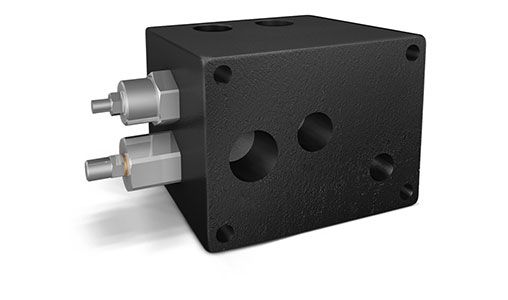

Two Pump "Hi-Low" Unloading Valves Flangeable (Base NG6-NG10 and NG16)

Use and Operation
This valve is used in a 2 parallel-working pumps circuit in order to release the excess of the higher flow pump to the tank when this gets the required pressure setting. Since this moment and on the actuator works with the lower flow pumps at higher pressure, consuming less energy. It’s ideal for direct flange-mounting on solenoid valves.

Materials and Features

  • Body: zinc-plated steel
  • Internal Parts: hardened and ground steel
  • Seals: BUNA N standard
  • Poppet Type: minor leakage

Applications
Fix the valve to the pressure flow by connecting BP to the higher flow pump, AP to the lower flow pump, T to the tank and M to the eventual manometer. Flange the solenoid valve to the VABP and connect ports A and B to the actuator.

Code:

V0518 - V0515 - V0516

VABP FL - VABP FL
VABP FL - VABP FL
