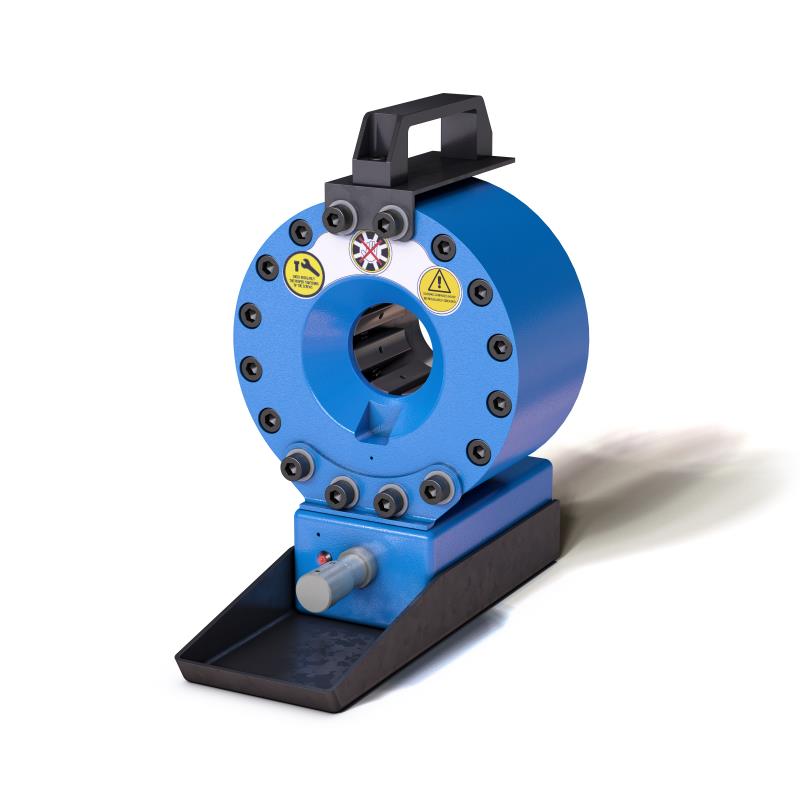

TUBOMATIC H47 E / TUBH47E
Tubomatic H47E is ideal for crimping hydraulic hoses up to 1" 2 braids.
This versatile machine can be used for several applications. Light and easy to move, it is the perfect equipment for on-site service.
Main Features
- manual pump;
- equipped with an electric limit switch indicating when the crimping diameter is reached;
- tool for dies change
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 100 TON (110 US TONS) |
| CAPACITY | 1'' 2 SP |
| MAXIMUM CRIMPING Diam. | 46 mm* (1.811'') |
| DIE OPENING | Ø + 20 mm (Ø + 0.788'') |
| 90 FITTINGS | 3/8'' |
| DIMENSIONS L x W x H | 300x345x330 mm (11.820''x13.593''x13.002'') |
| WEIGHT | 28 KG (62 Lbs) |
| EFFORT ON LEVER | 30 KG (66 Lbs) |
| ONE ACTING CYLINDER | incl. |
| OIL | incl. |
| SPECIAL DIES | OPTIONAL |
| TOOL FOR DIE CHANGE | OPTIONAL |
