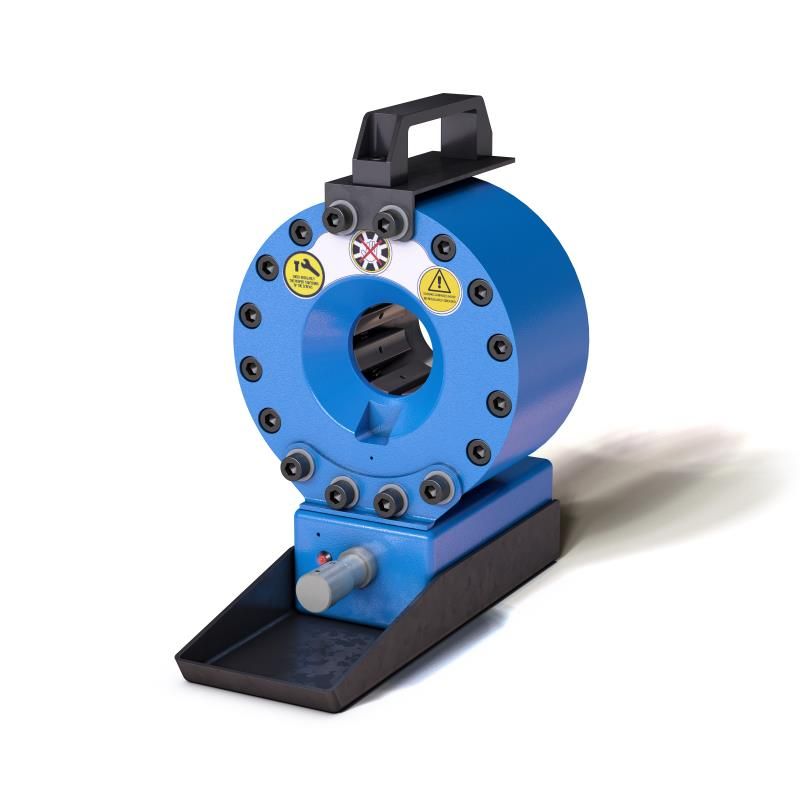

TUBOMATIC H47 E / TUBH47E

Tubomatic H47E is ideal for crimping hydraulic hoses up to 1" 2 braids.
This versatile machine can be used for several applications. Light and easy to move, it is the perfect equipment for on-site service.

Main Features

  • manual pump;
  • equipped with an electric limit switch indicating when the crimping diameter is reached;
  • tool for dies change

Product specifications could be modified without prior notice.

TUBOMATIC H47 E


CRIMPING FORCE 100 TON (110 US TONS)
CAPACITY 1'' 2 SP
MAXIMUM CRIMPING Diam. 46 mm* (1.811'')
DIE OPENING Ø + 20 mm (Ø + 0.788'')
90 FITTINGS 3/8''
DIMENSIONS L x W x H 300x345x330 mm (11.820''x13.593''x13.002'')
WEIGHT 28 KG (62 Lbs)
EFFORT ON LEVER 30 KG (66 Lbs)
ONE ACTING CYLINDER incl.
OIL incl.
SPECIAL DIES OPTIONAL
TOOL FOR DIE CHANGE OPTIONAL
