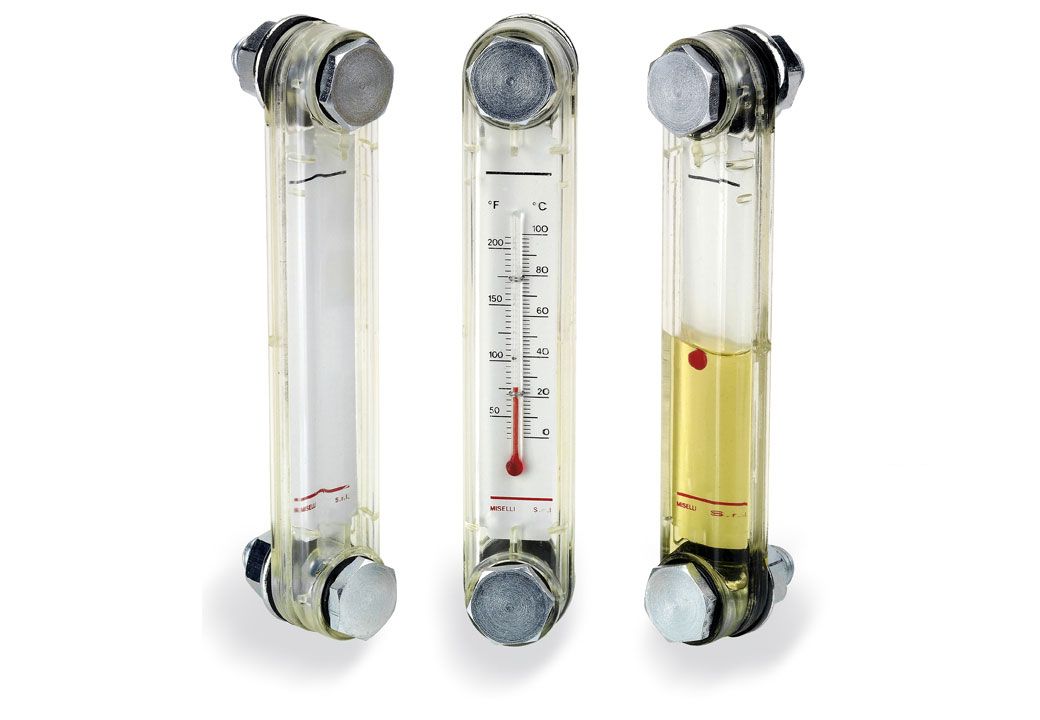

Vertical level gauge
Material: transparent polyamide based (PA-T) technopolymer.
Dimensions: center-to-center distance 76 mm (3”) o 127 mm (5”).
Standard executions: SLV without thermometer o SLVT with thermometer.
Max working temperature: 90°C/194 F (test made up to 1 Bar/14,5 PSI).
Assembly: providing 2 threaded holes M10 or M12 (± 0,2 mm). Alternatively they can be secured internally through 2 plain holes 10,2 mm or 12,2 mm using the flanged nuts provided. Maximum tightening torque suggested 3 Nm.
Model
SLV/127, SLVT/127, SLV/127/RB
