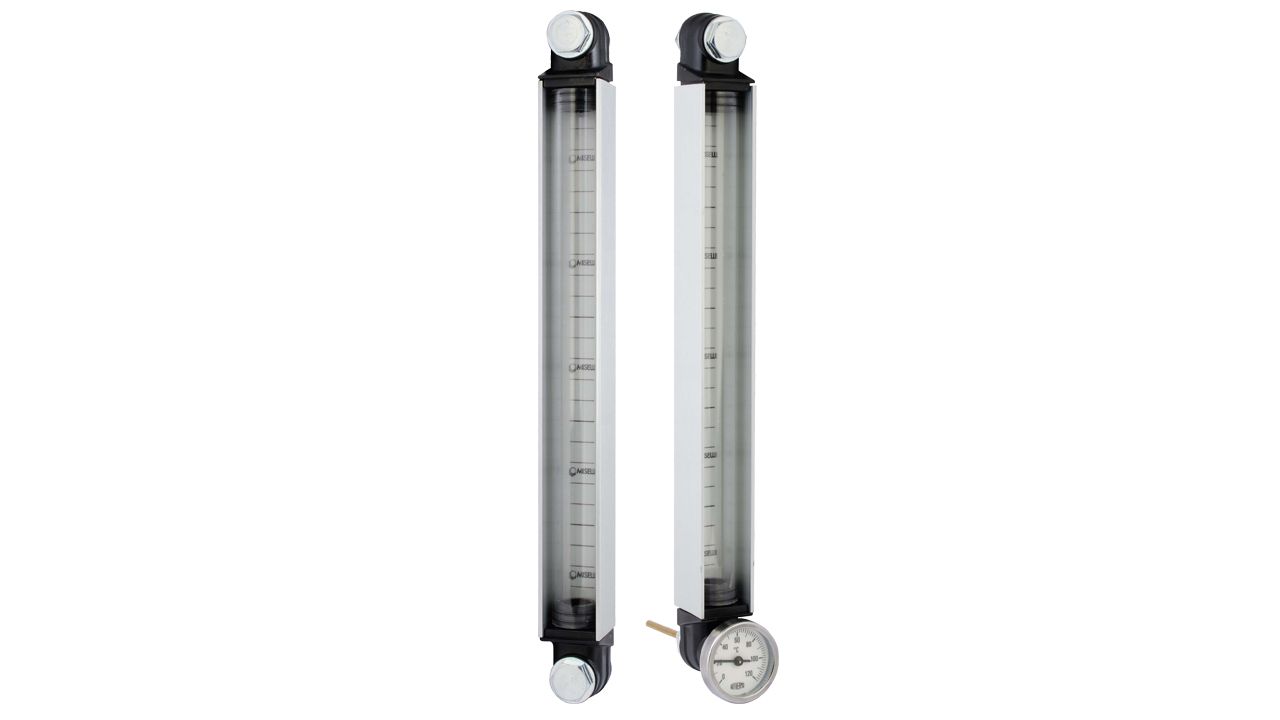

XLV / XLV-T
Extend level gauge with metal casing
Material: transparent polycarbonate tube.
External casing: aluminium U-shape.
Standard executions: XLV without thermometer or XLV-T with thermometer.
Max working temperature: 90°C/194 F (test made up to 1 Bar/14,5 PSI).
Assembly: providing 2 threaded holes M12 (± 0,2 mm). Alternatively they can be secured internally through 2 plain holes 12,2 mm using the flanged nuts provided. Maximum tightening torque suggested 5 Nm.
Model
XLV/300/M12, XLV/400/M12, XLV/500/M12
XLV/300/M12, XLV/400/M12, XLV/500/M12
