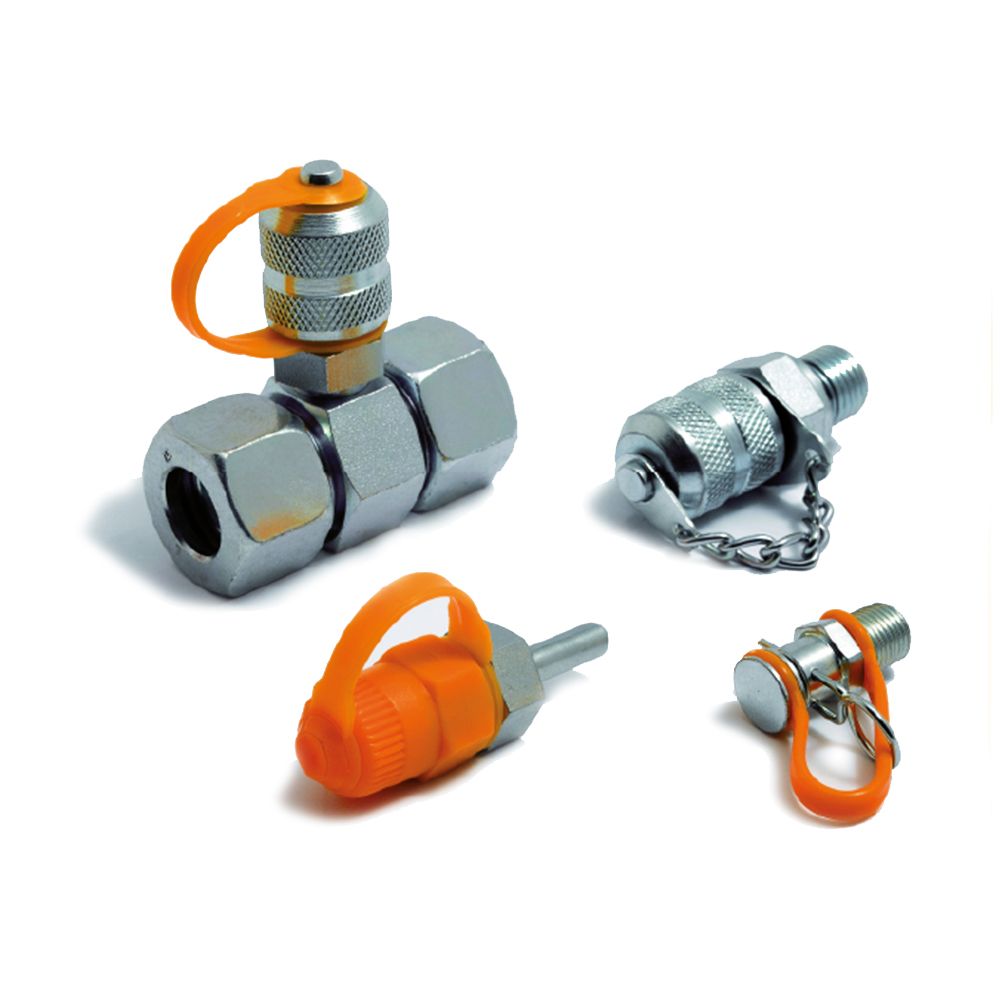

Test Couplings For Pressure Control

The diagnostic system developed by Mini Press guarantees at any time, place and condition, the immediate and manual pressure control inside the machine, without stopping its functioning up to 630 bar.

Applications:

  • Pressure control
  • Lubrification
  • Air bleeding
  • Oil sampling


Materials:
Galvanised carbon steel
(Stainless steel AISI316 is available on request)

Sealing:
NITRILE BUNA N (NBR)
(FKM-viton is available on request)


Working temperature:

  • -30°C…+125°C (NITRILE)
  • -25°C…+230°C (FKM)

Fluids:

  • hydraulic oils
  • Mineral oils
  • Suitability with other fluids on request
Model
Test Couplings For Pressure Control

Download Test Couplings For Pressure Controls Catalogue
