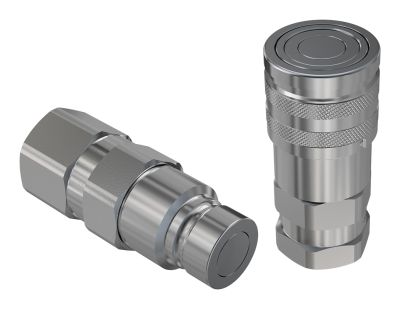

2FFI stainless steel


2FFI stainless steel
Applications

Flat face couplings, ISO 16028, stainless steel

Flat face couplings, with stainless steel (AISI 316) components and seals in Viton. High resistance to corrosion. ISO 16028 interchange.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 2FFI14 GAS F2V BSPP 1/4" FEMALE 24 27 58.6
 6,3 2FFI14 GAS F2VS   24 27 58.6
 6,3 2FFI14 NPT F 2 NPTF 1/4" FEMALE 24 27 58.6
 10 2FFN38 GAS F 2V BSPP 3/8" FEMALE 27 30 73.2
 10 2FFN38-12GASF2V BSPP 1/2" FEMALE 27 30 74.9
 10 2FFN38-3/18 F2V M18x1.5 MALE 10S 27 30 73.8
 12,5 2FFI12 GAS F 2V BSPP 1/2" FEMALE 32 38 81.9
 12,5 2FFI12 NPT F 2V NPTF 1/2" FEMALE 32 38 82.4
 12,5 2FFI12-34GASF2E   34 38 83.7
 12,5 2FFI12-34GASF2V BSPP 3/4" FEMALE 34 38 83.7
 20 2FFI34 GAS F 2V BSPP 3/4" FEMALE 41 48 100.3
 20 2FFI34 NPT F 2V NPTF 3/4" FEMALE 42 48 100.3
 25 2FFI 1 GAS F 2V BSPP 1" FEMALE 50 55 101
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 FFI14 GAS M2V BSPP 1/4" FEMALE 24 26 16.1 62.8
 10 FFN38 GAS M 2V BSPP 3/8" FEMALE 30 30 19.7 67
 10 FFN38-12GAS M2V BSPP 1/2" FEMALE 27 30 19.7 71
 10 FFN38-3/18 M2V M18x1.5 MALE 10S 27 30 19.7 68
 12,5 FFI12 GAS M 2V BSPP 1/2" FEMALE 32 35 24.5 83.6
 12,5 FFI12 NPT M 2V NPTF 1/2" FEMALE 32 35 24.5 83.6
 12,5 FFI12-34GASM2V BSPP 3/4" FEMALE 34 38 24.5 83.5
 20 FFI34 GAS M 2V BSPP 3/4" FEMALE 42 46 29.9 99.4
 20 FFI34 NPT M 2V NPTF 3/4" FEMALE 42 46 29.9 99.4
 25 FFI 1 GAS M 2V BSPP 1" FEMALE 50 55 36 107.7
