3CFPV


3CFPV

Applications

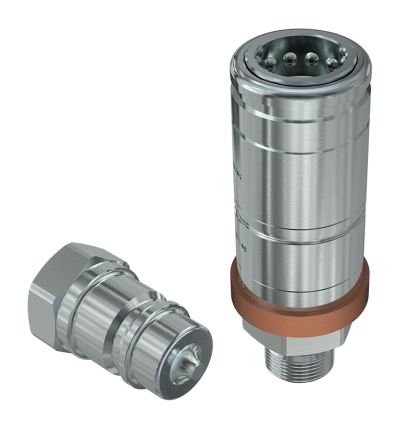

Push-pull female couplings for agriculture

Push-pull coupling, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange.


Items
Size (mm)  PartNumber Thread HEX1 HEX2 D1 L1
 12,5 3CFPV 12 GAS F BSPP 1/2" FEMALE 27   42 107.2
 12,5 3CFPV21/2215 F M22x1,5 MALE 32   42 110.2
 12,5 3CFPV 7/2215 F M22x1.5 MALE BULKHEAD SHORT 15L 32 27 42 123.4
 12,5 3CFPV 12 NPT F NPTF 1/2" FEMALE 27   42 107.2
 12,5 3CFPV14/78UNFF 7/8"-14 UNF MALE BULKHEAD JIC 32 27 42 128.7
 12,5 3CFPV 7/1815 F M18x1.5 MALE BULKHEAD SHORT 12L 32 24 42 122.2
 12,5 3CFPV14/34UNFF 3/4"-16 UN MALE BULKHEAD JIC 32 27 42 124.8
 12,5 3CFPV 1/1815 F M18x1,5 MALE 32   42 113.2
 12,5 3CFPV 1/2215 F M22x1,5 MALE 32   42 110.7
 12,5 3CFPV 34 UNF F 3/4"-16 UNF FEMALE ORB 27   42 107.2
 12,5 3CFPV081/27FJDS   32   38 113.2
 12,5 3CFPV0821/18FU M18x1,5 MALE 32   42 109.7
 12,5 3CFPV087/18F U M18x1.5 MALE BULKHEAD SHORT 12L 32 24 42 122.2
 12,5 3CFPV087/22F U M22x1.5 MALE BULKHEAD SHORT 15L 32 27 42 123.4
 12,5 3CFPV087/22FAG   38 27 40 138.6
 12,5 3CFPV087/2615F M26x1.5 MALE BULKHEAD SHORT 18L 32 36 42 126.2
 12,5 3CFPV0874/38GF BSPP 3/8 MALE 32   42 109.2
 12,5 3CFPV1/2215F C   38   40 110.7
 12,5 3CFPV1/2215FJDC   38   40 110.7
 12,5 3CFPV1/2215 FKU   32   42 110.7
 12,5 3CFPV1/2215FJDS   32   38 110.7
 12,5 3CFPV1/22FJDMO   32   38 110.7
 12,5 3CFPV1/22FU MC   32   42 109.2
 12,5 3CFPV1/34UNF F 3/4"-16 UNF MALE 32   42 106.8
 12,5 3CFPV1/78UNF F 7/8"-14 UNF MALE 32   42 108.4
 12,5 3CFPV12/1UNS F 1"-14 UNS MALE BULKHEAD ORFS 32 34 42 130.2
 12,5 3CFPV12/1UNSFU 1"-14 UNS MALE BULKHEAD ORFS 32 34 42 130.2
 12,5 3CFPV12NPT F T NPTF 1/2" FEMALE 27   42 107.2
 12,5 3CFPV12NPT F TN NPTF 1/2" FEMALE 27   42 107.2
 12,5 3CFPV14/78UFVAL   32   82 162.5
 12,5 3CFPV19/2215 F M22x1,5 MALE 32   42 134.7
 12,5 3CFPV19/22FSDFU M22x1,5 MALE 32   42 137.7
 12,5 3CFPV 8/2415 F M24x1.5 MALE BULKHEAD SHORT 16S 32 30 42 121.4
 12,5 3CFPV21/22F U M22x1,5 MALE 32   42 110.2
 12,5 3CFPV081/12G F 1/2" BSPP MALE 32   42 109.7
 12,5 3CFPV081/12S F 3/4"-16 UNF MALE 32   42 108.2
 12,5 3CFPV081/1815F A M18x1,5 MALE 32   38 113.2
 12,5 3CFPV0816/2015F M20x1.5 MALE 28   28 108
 12,5 3CFPV0819/22F AR M22x1,5 MALE 32   38 135.7
 12,5 3CFPV081/58S F 7/8"-14 UNF MALE 32   42 108.7

Download 3cfpv Catalogue
