3CKHF


3CKHF
Applications

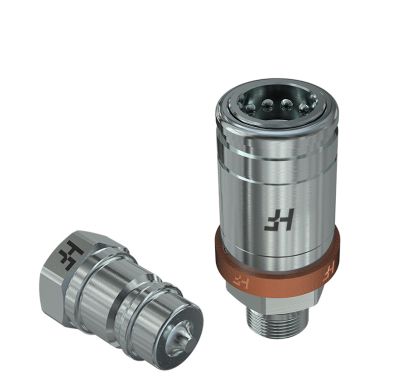

Compact push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

Compact push-pull coupling for application with higher flow rate and limited space, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange. Flow rate up to 250 l/min. Reduced dimensions: 15 mm shorter than standard version.


Items
Size (mm)  PartNumber Thread
 12,5 3CKHF0821/2215 F M22x1,5 MALE
 12,5 3CKHF081/2215 F M22x1,5 MALE
 12,5 3CKHF087/1815 F M18x1.5 MALE BULKHEAD SHORT 12L
 12,5 3CKHF087/2215 F M22x1.5 MALE BULKHEAD SHORT 15L
 12,5 3CKHF087/2615 F M26x1.5 MALE BULKHEAD SHORT 18L
Size (mm)  PartNumber Thread
 12,5 NVHF08 GAS M BSPP 1/2" FEMALE
 12,5 CNVHF08 38GAS M BSPP 3/8" FEMALE
 12,5 CNVHF082/1815 M M18x1,5 MALE 12L
 12,5 CNVHF082/2215 M M22x1,5 MALE 15L
 12,5 CNVHF082/2615 M M26x1,5 MALE 18L

Download 3ckhf Catalogue
