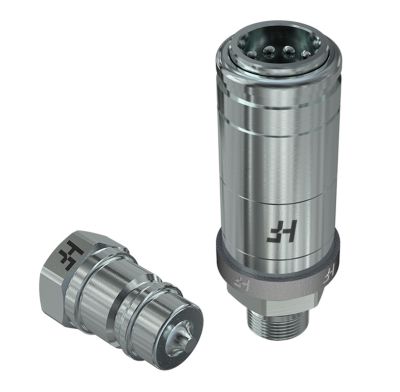

4SRHF


4SRHF
Applications

Push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

Push-pull coupling for high flow rate applications, connectable under residual pressure in both male and female side. Can be screwed directly into valve ports or rigid pipes. Breakaway function. ISO 7241 part A interchange. Flow rate up to 250 l/min.


Items
Size (mm)  PartNumber Thread
 12,5 4SRHF0821/2215 F M22x1,5 MALE
 12,5 4SRHF081/1815 F M18x1,5 MALE
 12,5 4SRHF081/2215 F M22x1,5 MALE
 12,5 4SRHF08 12GAS F BSPP 1/2" FEMALE
 12,5 4SRHF08 12NPT F NPTF 1/2" FEMALE
 12,5 4SRHF0819/2215 F M22x1,5 MALE
 12,5 4SRHF087/1815 F M18x1.5 MALE BULKHEAD SHORT 12L
 12,5 4SRHF087/2215 F M22x1.5 MALE BULKHEAD SHORT 15L
 12,5 4SRHF081/12SAE F 3/4"-16 UNF MALE
Size (mm)  PartNumber Thread
 12,5 NVHF08 GAS M BSPP 1/2" FEMALE
 12,5 CNVHF08 38GAS M BSPP 3/8" FEMALE
 12,5 CNVHF082/1815 M M18x1,5 MALE 12L
 12,5 CNVHF082/2215 M M22x1,5 MALE 15L
 12,5 CNVHF082/2615 M M26x1,5 MALE 18L

Download 4srhf Catalogue
