B Series

B Series

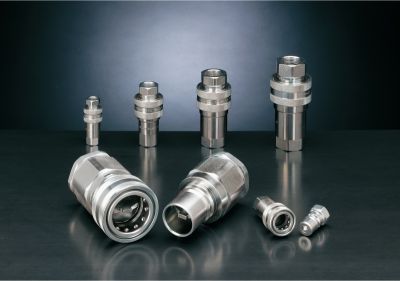

The accordance with the ISO 7241-B standard of these couplings assures their interchangeability all over the world. The B series is mainly used in industry: his hardiness makes it suitable for heavy duties in the steel industry and in the oil plant.

  • Interchangeability: ISO 7241-1B
  • Shut-off system: poppet valve
  • Latching system: balls - bearing
  • Connection: pulling back the sleeve
  • Disconnection: pulling back the sleeve
  • Connectability: without pressure
  • Disconnection under pressure: not allowed
  • Threads: BSP – NPTF
  • Sizes: 1/4", 3/8”, 1/2”, 3/4”, 1”
  • Materials: Female in carbon steel Male in high grade carbon steel, induction hardened Steel hardened valve
  • Surface treatment: zinc plating and Cr III passivation,  springs in C72 steel,  high resistance balls 100 C6
  • Seals: standard NBR, on request VITON
  • Antiextrusion rings: PTFE
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +140°C

For temperature exceeding this values, the quick-release couplings will be supplied with all components in steel.

BM1002 BF1002 BM1502 BF1502 BM1004 BF1004 BM1504 BF1504 BM1006 BF1006 BM1506 BF1506 BM1008 BF1008 BM1508 BF1508 BM1012 BF1012 BM1512 BF1512 BM1016 BF1016 BM1516 BF1516

Download B Series Catalogue
