CNV


CNV
Applications

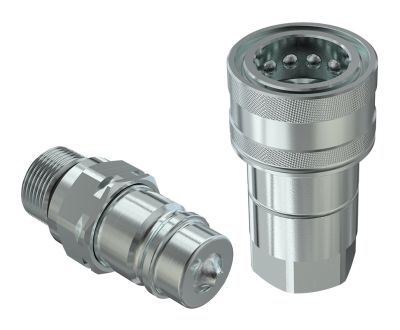

Male couplings for agriculture, suitable for CPV female parts, ISO 7241-A interchange

Standard male couplings for agriculture applications. Wide range of male threads available. ISO 7241 part A interchange.


Items

.

Size (mm)  PartNumber Thread
 10 CNV060/1415 M M14x1,5 FEMALE ORB
 10 CNV061/12SAE M 3/4"-16 UNF MALE
 10 CNV0613/12SMVAL
 10 CNV062/1615 M M16x1,5 MALE 10L
 10 CNV062/1815 M M18x1,5 MALE 12L
 10 CNV067/1815 M M18x1.5 MALE BULKHEAD SHORT 12L
 12,5 CNV082/1815 M M18x1,5 MALE 12L
 12,5 CNV082/2215 M M22x1,5 MALE 15L
 12,5 CNV082/1615 M M16x1,5 MALE 10L
 12,5 CNV0816/38GASM 60° 3/8 BSPP MALE
 12,5 CNV0836/12GASM 60° 1/2 BSP MALE
 12,5 CNV087/2215 M M22x1.5 MALE BULKHEAD SHORT 15L
 12,5 CNV085/1815 M M18x1,5 MALE BULKHEAD 12L
 12,5 CNV08 38 GAS M BSPP 3/8" FEMALE
 12,5 CNV080/1615 M M16x1,5 FEMALE ORB
 12,5 CNV080/1815 M M18x1,5 FEMALE ORB
 12,5 CNV080/2015 M M20x1,5 FEMALE ORB
 12,5 CNV080/2215 M M22x1,5 FEMALE ORB
 12,5 CNV080/38GAS M 3/8 BSP FEMALE ORB
 12,5 CNV081/12SAE M 3/4"-16 UNF MALE
 12,5 CNV081/1815 M M18x1,5 MALE
 12,5 CNV081/2215 M M22x1,5 MALE
 12,5 CNV081/272 M M27x2 MALE
 12,5 CNV0812/12SAEM 13/16"-16 UN MALE BULKHEAD ORFS
 12,5 CNV0814/12SAEM 3/4"-16 UN MALE BULKHEAD JIC
 12,5 CNV0816/12GASM 60° 1/2 BSPP MALE
 12,5 CNV082/1415 M M14x1,5 MALE 8L
 12,5 CNV082/2615 M M26x1,5 MALE 18L
 12,5 CNV0822/12GASM 1/2 BSPP MALE
 12,5 CNV0827/58SAEM 1" - 14 UNS
 12,5 CNV083/2015 M M20x1.5 MALE 12S
 12,5 CNV083/2415 M M24x1,5 MALE 16S
 12,5 CNV084/12GAS M 60° 1/2" BSPP MALE BULKHEAD
 12,5 CNV085/1615 M M16x1,5 MALE BULKHEAD 10L
 12,5 CNV085/2215 M M22x1,5 MALE BULKHEAD 15L
 12,5 CNV085/2215 MDO
 12,5 CNV086/2015 M M20x1.5 MALE BULKHEAD 12S
 12,5 CNV087/1615 M M16x1,5 MALE BULKHEAD SHORT 10L
 12,5 CNV087/1815 M M18x1.5 MALE BULKHEAD SHORT 12L
 12,5 CNV088/2215 M M22x1.5 MALE BULKHEAD SHORT
 20 CNV120/272 M M27x2 FEMALE ORB
 20 CNV121/2215 M M22x1,5 MALE
 20 CNV121/272 M M27x2 MALE
 20 CNV1212/1SAE M 1 7/16" - 12 UN MALE BULKHEAD ORFS
 20 CNV1212/34SAEM 1 3/16" - 12 UN MALE BULKHEAD ORFS
 20 CNV123/302 M M30x2 MALE 20S
 20 CNV125/302 M M30x2 MALE BULKHEAD 22L
 20 CNV125/362 M M36x2 MALE BULKHEAD 28L
 20 CNV125/452 M M45x2 MALE BULKHEAD 35L
 20 CNV127/362 M M36x2 MALE BULKHEAD SHORT 28L
 25 CNV16 1GAS M BSPP 1" FEMALE
 25 CNV16 34GAS M BSPP 1" FEMALE
 25 CNV160/1GAS M 1 BSP FEMALE ORB
 25 CNV160/34GAS M 3/4 BSP FEMALE ORB
 25 CNV161/332 MVAL
 25 CNV162/302 M M30x2 MALE 22L
 25 CNV162/362 M M36x2 MALE 28L
 25 CNV163/302 M M30x2 MALE 20S

Download Cnv Catalogue
