Applications

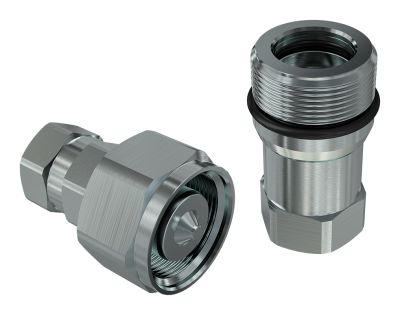

Screw-to-connect couplings for construction equipment application

Screw-on couplings purposely designed for Caterpillar machines. Connectable under residual pressure. High resistance to pressure and flow impulses. Equipped with a hexagon-shaped sleeve and an external o-ring ensuring high friction and low risk of accidental disconnection due to vibrations.


Items
Size (mm)  PartNumber Thread HEX1 HEX3 D1 L1
 12,5 CVC08 12 GAS F BSPP 1/2" FEMALE 30   35 50
 12,5 CVC08 58S F 7/8"-14 UNF FEMALE ORB 30   35 62
 12,5 CVC080/2215 F M22x1,5 FEMALE ORB 27   35 60
 12,5 CVC0811/12S F 13/16"-16 UN MALE ORFS 27   35 58
 12,5 CVC082/1815 F M18x1,5 MALE 12L 27   35 56
 25 CVC163/362 F M36x2 MALE 25S 38   43 98
 25 CVC16 3015 F M30x1,5 FEMALE 42 42 54 97
 25 CVC16 78S F 1-3/16"-12 UN FEMALE ORB 42 42 54 97
Size (mm)  PartNumber Thread HEX1 HEX3 D1 L1
 12,5 CVC08 12 GAS M BSPP 1/2" FEMALE 30   45 48
 12,5 CVC08 58S M 7/8"-14 UNF FEMALE ORB 30 41 45 63
 12,5 CVC080/2215 M M22x1,5 FEMALE ORB 27 41 45 61
 12,5 CVC081/12S M 3/4"-16 UNF MALE 27 41 45 57
 12,5 CVC0812/12S M 13/16"-16 UN MALE BULKHEAD ORFS 27 41 45 80
 12,5 CVC0812/58S M 1"-14 UNS MALE BULKHEAD ORFS 34 41 45 91
 12,5 CVC082/2215 M M22x1,5 MALE 15L 27 41 45 58
 25 CVC16 3015 M M30x1,5 FEMALE 42 65 72 90
 25 CVC16 78S M 1-3/16"-12 UN FEMALE ORB 42 65 72 90
 25 CVC163/362 M M36x2 MALE 25S 38 65 72 91
 25 CVC163/422 M M42x2 MALE 30S 46 65 72 88
 25 CVC1634/12 M SAE FLANGE 3/4 42 65 72 89
 25 CVC16 1SAE M 1-5/16"-12 UN FEMALE ORB 42 65 72 91
