CVV


CVV

Applications

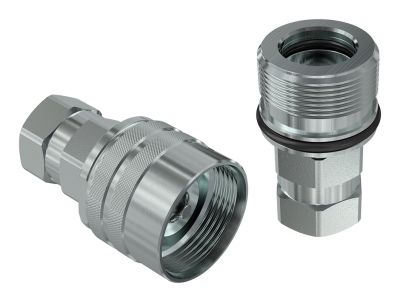

Screw-to-connect couplings, ISO 14541 interchange

Screw-on couplings suitable for general purpose applications. Connectable under residual pressure. High resistance to pressure and flow impulses. Interchangeable according to ISO 14541 standard for size: 1/4"; 3/8"; 1/2"; 3/4".


Items
Size (mm)  PartNumber Thread HEX1 HEX2 D1 L1
 6,3 CVV04 14 GAS F BSPP 1/4" FEMALE 19   24 63
 6,3 CVV0412/12S F 13/16"-16 UN MALE BULKHEAD ORFS 24 27 24 82.5
 6,3 CVV0427/14SAEF 9/16"-18 UNF FEMALE 19   24 62
 6,3 CVV047/1215 F M12x1,5 MALE BULKHEAD SHORT 6L 19 19 24 74
 6,3 CVV047/1415 F M14x1,5 MALE BULKHEAD SHORT 8L 19 19 24 74
 6,3 CVV047/1815 F M18x1.5 MALE BULKHEAD SHORT 12L 22 24 24 74
 10 CVV06 38 GAS F BSPP 3/8" FEMALE 24   28 71
 10 CVV062/1615 F M16x1,5 MALE 10L 24   28 68
 10 CVV065/1615 F M16x1,5 MALE BULKHEAD 10L 24 22 28 92
 10 CVV067/1815 F M18x1.5 MALE BULKHEAD SHORT 12L 24 24 28 83
 12,5 CVV08 12 GAS FV BSPP 1/2" FEMALE 27   36 61
 12,5 CVV08 38 GAS FV BSPP 3/8" FEMALE 27   36 57
 12,5 CVV080/12GAS FV BSPP 1/2 FEMALE ORB 27   36 61
 12,5 CVV080/12SAE FV 3/4"-16 UNF FEMALE ORB 27   36 61
 12,5 CVV080/2215 FV M22x1,5 FEMALE ORB 27   36 61
 12,5 CVV080/38GAS FV BSPP 3/8 FEMALE ORB 27   36 57
 12,5 CVV082/1615 FV M16x1,5 MALE 10L 27   36 59
 12,5 CVV082/1815 FV M18x1,5 MALE 12L 27   36 57
 12,5 CVV082/2215 FV M22x1,5 MALE 15L 27   36 58
 12,5 CVV082/2615 FV M26x1,5 MALE 18L 27   36 58
 12,5 CVV0827/58SAEFV 1"-14 UNS FEMALE ORFS 30   36 64
 12,5 CVV083/2015 FV M20x1.5 MALE 12S 27   36 58
 12,5 CVV083/2215 FV M22x1.5 MALE 14S 27   36 60
 12,5 CVV083/2415 FV M24x1,5 MALE 16S 27   36 60
 12,5 CVV085/1615 FV M16x1,5 MALE BULKHEAD 10L 27 22 36 81
 12,5 CVV085/1815 FV M18x1,5 MALE BULKHEAD 12L 27 24 36 81
 12,5 CVV085/2215 FV M22x1,5 MALE BULKHEAD 15L 27 27 36 81
 12,5 CVV085/2615 FV M26x1,5 MALE BULKHEAD 18L 27 36 40 81
 12,5 CVV086/2415 FV M24x1.5 MALE BULKHEAD 16S 27 30 36 81
 12,5 CVV087/1815 FV M18x1.5 MALE BULKHEAD SHORT 12L 27 24 36 72
 12,5 CVV087/2215 FV M22x1.5 MALE BULKHEAD SHORT 15L 27 27 36 72
 20 CVV12 34 GAS FV BSPP 3/4" FEMALE 38   42 83
 20 CVV120/34SAE FV 1-1/16"-12 UN FEMALE ORB 38   42 83
 25 CVV16 1 GAS FV BSPP 1" FEMALE 42   46 94
 25 CVV16 34 GAS FV BSPP 3/4" FEMALE 38   48 89
 25 CVV160/1GAS FV BSPP 1 FEMALE ORB 42   48 93
 25 CVV160/34GASFV BSPP 3/4 FEMALE ORB 38   48 90
 25 CVV1611/114S FV 1-11/16"-12 UN MALE ORFS 50   55 96
 25 CVV1611/1SAE FV 1-7/16"-12 UN MALE ORFS 50   55 96
 25 CVV162/362 F V M36x2 MALE 28L 38   48 87
 25 CVV163/302 F V M30x2 MALE 20S 38   48 92
 25 CVV163/362 F V M36x2 MALE 25S 38   48 93
 25 CVV163/422 F V M42x2 MALE 30S 46   51 90
 25 CVV165/2615 FV M26x1,5 MALE BULKHEAD 18L 38 36 48 116
 25 CVV165/302 F V M30x2 MALE BULKHEAD 22L 41   48 109
 25 CVV165/362 F V M36x2 MALE BULKHEAD 28L 42 46 52 106
 25 CVV166/302 F V M30x2 MALE BULKHEAD 20S 38 41 48 114
 25 CVV166/362 F V M36x2 MALE BULKHEAD 25S 42 46 52 113
 25 CVV166/422 F V M42x2 MALE BULKHEAD 30S 50 50 56 110
 37,5 CVV24 112GAS FV BSPP 1-1/2" FEMALE 65   72 121
 37,5 CVV242/452 F V M45x2 MALE 35L 55   70 111
 37,5 CVV243/422 F V M42x2 MALE 30S 55   70 115
 37,5 CVV243/522 F V M52x2 MALE 38S 55   70 117
 37,5 CVV245/452 F V M45x2 MALE BULKHEAD 35L 55 55 70 131
 37,5 CVV246/422 F V M42x2 MALE BULKHEAD 30S 55 50 70 135
 37,5 CVV246/522 F V M52x2 MALE BULKHEAD 38S 55 65 73 137
Size (mm)  PartNumber Thread HEX1 HEX2 HEX3 D1 L1
 6,3 CVV04 14 GAS M BSPP 1/4" FEMALE 19   27 30 63
 6,3 CVV0411/12S M 13/16"-16 UN MALE ORFS 22   27 30 61
 6,3 CVV042/1215 M M12x1,5 MALE 6L 19   27 30 58
 6,3 CVV042/1415 M M14x1,5 MALE 8L 19   27 30 58
 6,3 CVV042/1815 M M18x1,5 MALE 12L 22   27 30 59
 6,3 CVV0427/14SAEM 9/16"-18 UNF FEMALE 19   27 30 62
 10 CVV06 38 GAS M BSPP 3/8" FEMALE 24   30 34 70
 10 CVV062/1615 M M16x1,5 MALE 10L 24   30 34 66
 10 CVV062/1815 M M18x1,5 MALE 12L 24   30 34 68
 12,5 CVV08 12 GAS MV BSPP 1/2" FEMALE 27   36 42 70
 12,5 CVV08 38 GAS MV BSPP 3/8" FEMALE 27   36 42 66
 12,5 CVV080/12GAS MV BSPP 1/2 FEMALE ORB 27   36 42 70
 12,5 CVV080/12SAE MV 3/4"-16 UNF FEMALE ORB 27   36 42 70
 12,5 CVV080/2215 MV M22x1,5 FEMALE ORB 27   36 42 70
 12,5 CVV080/38GAS MV BSPP 3/8 FEMALE ORB 27   36 42 66
 12,5 CVV082/1615 MV M16x1,5 MALE 10L 27   36 42 67
 12,5 CVV082/1815 MV M18x1,5 MALE 12L 27   36 42 66
 12,5 CVV082/2215 MV M22x1,5 MALE 15L 27   36 42 67
 12,5 CVV082/2615 MV M26x1,5 MALE 18L 27   36 42 67
 12,5 CVV0827/58SAEMV 1"-14 UNS FEMALE ORFS 30   36 42 73
 12,5 CVV083/2015 MV M20x1.5 MALE 12S 27   36 42 67
 12,5 CVV083/2215 MV M22x1.5 MALE 14S 27   36 42 69
 12,5 CVV083/2415 MV M24x1,5 MALE 16S 27   36 42 69
 12,5 CVV085/1815 MV M18x1,5 MALE BULKHEAD 12L 27 24 36 42 90
 12,5 CVV085/2215 MV M22x1,5 MALE BULKHEAD 15L 27 27 36 42 90
 12,5 CVV086/2215 MV M22x1.5 MALE BULKHEAD 14S 27 27 36 42 90
 12,5 CVV086/2415 MV M24x1.5 MALE BULKHEAD 16S 27 30 36 42 90
 12,5 CVV087/1815 MV M18x1.5 MALE BULKHEAD SHORT 12L 27 24 36 42 81
 12,5 CVV087/2215 MV M22x1.5 MALE BULKHEAD SHORT 15L 27 27 36 42 81
 20 CVV12 34 GAS MV BSPP 3/4" FEMALE 38   41 48 86
 20 CVV120/34SAE MV 1-1/16"-12 UN FEMALE ORB 38   41 48 86
 25 CVV16 1 GAS MV BSPP 1" FEMALE 42   50 56 95
 25 CVV16 34 GAS MV BSPP 3/4" FEMALE 38   50 56 90
 25 CVV163/362 M V M36x2 MALE 25S 38   50 56 93
 25 CVV16 78S M V 1-3/16"-12 UN FEMALE ORB 42   50 56 93
 25 CVV160/1GAS MV BSPP 1 FEMALE ORB 42   50 56 49
 25 CVV160/34GASMV BSPP 3/4 FEMALE ORB 38   50 56 90
 25 CVV1611/114S MV 1-11/16"-12 UN MALE ORFS 50   50 56 97
 25 CVV1611/1SAE MV 1-7/16"-12 UN MALE ORFS 50   50 56 97
 25 CVV162/302 M V M30x2 MALE 22L 38   50 56 89
 25 CVV162/362 M V M36x2 MALE 28L 38   50 56 88
 25 CVV163/302 M V M30x2 MALE 20S 38   50 56 93
 25 CVV163/422 M V M42x2 MALE 30S 38   50 56 90
 25 CVV165/362 M V M36x2 MALE BULKHEAD 28L 42 46 50 56 107
 25 CVV166/302 M V M30x2 MALE BULKHEAD 20S 38 41 50 56 115
 25 CVV166/362 M V M36x2 MALE BULKHEAD 25S 42 46 50 56 113
 25 CVV166/422 M V M42x2 MALE BULKHEAD 30S 50 50 50 56 110
 37,5 CVV24 112GAS MV BSPP 1-1/2" FEMALE 65   75 80 131
 37,5 CVV243/422 M V M42x2 MALE 30S 55   75 80 125
 37,5 CVV243/522 M V M52x2 MALE 38S 55   75 80 127
 37,5 CVV246/522 M V M52x2 MALE BULKHEAD 38S 55 65 75 80 147
