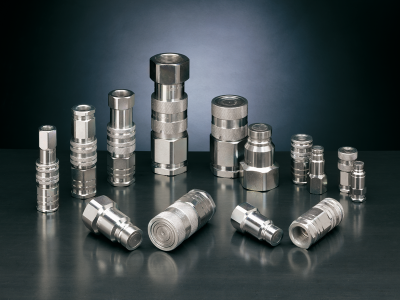

Peculiar features of these quick-release couplings are the facility of cleaning them and the extremely low spillage during connection and disconnection. They are recommended for all those applications where the leakage of oil or an other fluid may be dangerous for the safety of the workers: what’s more the locking sleeve of the female is provided with a safetysystem which makes sure a perfect connection and prevents accidental disconnection. The F series is very suitable in the industrial plant and in every field where is necessary to avoid the risk of pollution of the environment and also the contamination of the inside fluid of the coupling. Besides this series has low pressure drops, high flow rates and high operating pressures compared to the traditional types. Flat-face couplings are used to connect hydraulic tools on working machines in building site, mines, dockyards, railway yards, etc. The F series is also available in stainless steel AISI 316.

  • Interchangeability: ISO 16028
  • Shut-off system: flat valve
  • Latching system: balls - bearing
  • Connection: pushing the male coupling
  • Disconnection: pulling back the sleeve
  • Connectability: without pressure
  • Disconnection under pressure: not allowed
  • Threads: BSP – NPTF – BSPT
  • Sizes: 1/4" , 3/8", 1/2", 3/4", 1", 1.¼ ", 1.½ ", 2"
  • Materials: Female in high grade carbon steel with some parts induction hardened Male in high grade carbon steel, induction hardened Valves in high grade carbon steel
  • Surface treatment: zinc plating and Cr III passivation, springs in C72 steel, high resistance balls 100 C6
  • Seals: standard NBR and polyurethane, on request VITON
  • Anti-extrusion rings: PTFE
  • Working Temperatures: NBR -20°C +100°C  VITON -15°C +180°C

FM1004 FF1004 FM1504 FF1504 FM1804 FF1804 FM1006 FF1006 FM1506 FF1506 FM1806 FF1806 FM1008 FF1008 FM1508 FF1508 FM1808 FF1808 FM2008 FF2008 FM2508 FF2508 FM2808 FF2808 FM1012 FF101 FM1512 FF1512 FM1812 FF1812 FM2012 FF2012 FM2512 FF2512 FM2812 FF2812 FM1016 FF1016FM1516 FF1516 FM1816 FF1816 FM1020 FF1020 FM1520 FF1520 FM1820 FF1820FM1024 FF1024 FM1524 FF1524 FM1824 FF1824 FM1032 FF1032 FM1532 FF1532 FM1832 FF1832
